SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) INDICATOR LIGHT, SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) WARNING LIGHT


id041500885900


Purpose/Function

•  The Smart Brake Support/Smart City Brake Support (SBS/SCBS) indicator light (red)/Smart Brake Support/Smart City Brake Support (SBS/SCBS) warning light (amber), built into the instrument cluster, informs the driver of the following vehicle conditions:
―  Smart Brake Support/Smart City Brake Support (SBS/SCBS) indicator light (red)
•  Smart City Brake Support (SCBS) is operating (brake control (SCBS brake) is operating).
•  Smart Brake Support (SBS) is operating.
―  Smart Brake Support/Smart City Brake Support (SBS/SCBS) warning light (amber)
•  Smart City Brake Support (SCBS) system malfunction.
•  Smart Brake Support (SBS) system malfunction.

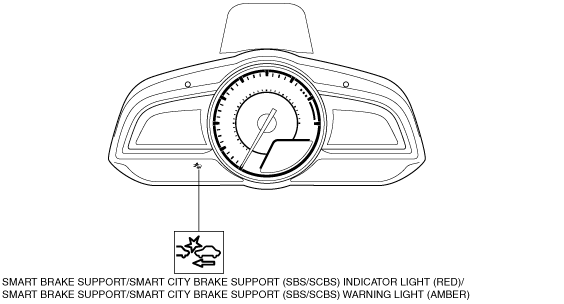

am3zzn00004892

Construction/Operation

•  When the Smart Brake Support (SBS) or Smart City Brake Support (SCBS) is non-operational, operational, and malfunctioning, the Smart Brake Support/Smart City Brake Support (SBS/SCBS) indicator light (red)/Smart Brake Support/Smart City Brake Support (SBS/SCBS) warning light (amber) operates according to the following table.
Note
•  For vehicle with center display, a warning message in the center display is displayed with the Smart Brake Support/Smart City Brake Support (SBS/SCBS) warning light (amber) turned on or flashed. For the message content and verification method, refer to the CENTER DISPLAY. (See CENTER DISPLAY [WITH CENTER DISPLAY].)
•  For vehicle with active driving display, when the Smart Brake Support (SBS)/Smart City Brake Support (SCBS) system operates, the user is notified by the flashing the Smart Brake Support/Smart City Brake Support (SBS/SCBS) indicator light (red) and the active driving display.
•  For vehicle with multi-information display, when the Smart Brake Support (SBS)/Smart City Brake Support (SCBS) system operates, the user is notified by the flashing the Smart Brake Support/Smart City Brake Support (SBS/SCBS) indicator light (red) and the multi-information display.

Item

Smart Brake Support/Smart City Brake Support (SBS/SCBS) indicator light (red)

Smart Brake Support/Smart City Brake Support (SBS/SCBS) warning light (amber)

Not operating/Normal condition
Not illuminated/Not flashed
Not illuminated/Not flashed
Operating
Flashes
Not illuminated/Not flashed
Malfunction
Not illuminated/Not flashed
Illuminated


Fail-safe

•  Function not equipped.
