CLIMATE CONTROL UNIT [MANUAL AIR CONDITIONER]

id0740a2005100


Purpose

•  The climate control unit performs air conditioning according to the operation by the users and the driving conditions of the vehicle.

Function

•  The climate control unit determines optimum air-conditioning based on the input signals from each sensor and the control module and the operation signals from the control panel, and controls each actuator, A/C compressor, and the blower motor. (See MANUAL AIR CONDITIONER SYSTEM [MANUAL AIR CONDITIONER].)

Construction

•  A wire-type climate control unit has been adopted.
•  The climate control unit consists of a control panel and a control unit.

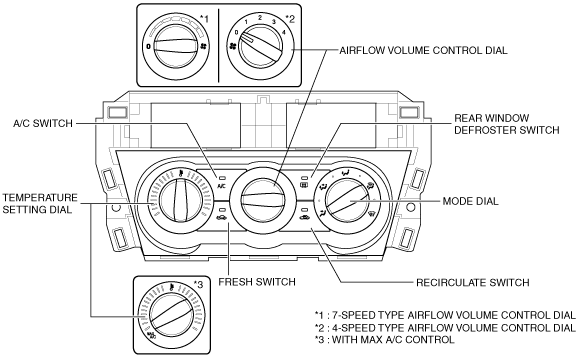

•  The switches and dials shown in the figure are positioned on the control panel.
am3zzn00004780

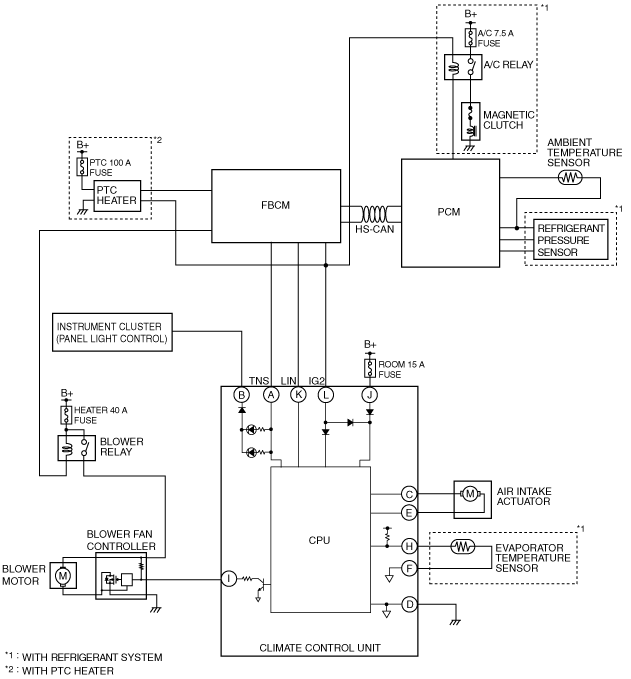

System Wiring Diagram

7-speed type airflow volume control dial

am3zzn00004735

4-speed type airflow volume control dial

am3zzn00004736

Operation


Control type transition by switch operation

Airflow temperature control, airflow volume control, airflow mode control

Operation switch

Airflow temperature control

Airflow volume control

Airflow mode control

Control prior to switch operation

Control prior to switch operation

Control prior to switch operation

Manual control

Manual control

Manual control

Defroster control
Airflow volume control dial
OFF
No change
OFF
No change
No change
1—7*1
1—4*2
No change
Manual control
No change
No change
MODE dial
VENT
No change
No change
Manual control
No change
BI-LEVEL
HEAT
DEF/HEAT
DEFROSTER
Temperature setting dial
MAX COLD*3
No change
No change
No change
No change
Except MAX COLD
A/C switch
No change
No change
No change
No change
RECIRCULATE switch
No change
No change
No change
No change
FRESH switch
No change
No change
No change
No change
Rear window defroster switch
No change
No change
No change
No change

*1  :7-speed type airflow volume control dial
*2  :4-speed type airflow volume control dial
*3  :With MAX A/C control

A/C compressor control, air intake control

Operation switch

A/C compressor control

Air intake control

Control prior to switch operation

Control prior to switch operation

Manual control

MAX A/C control*3

Manual control

Defroster control

MAX A/C control*3
Airflow volume control dial
OFF
OFF
OFF
No change
No change
No change
1—7*1
1—4*2
No change
No change
No change
No change
No change
MODE dial
VENT
No change*4
No change
No change*4
Defroster control
No change
BI-LEVEL
No change*4
No change
No change*4
Defroster control
No change
HEAT
No change
Manual control
No change
Defroster control
Manual control
DEF/HEAT
Defroster control
Defroster control
Defroster control
Manual control
Defroster control
DEFROSTER
Defroster control
Defroster control
Defroster control
Defroster control
Defroster control
Temperature setting dial
MAX COLD*3
No change*4
Manual control
No change*4
No change
No change
Except MAX COLD
No change
Manual control
No change
No change
Manual control
A/C switch
Manual control
Manual control
No change
No change
No change
RECIRCULATE switch
No change
No change
Manual control
Manual control
Manual control
FRESH switch
No change
No change
Manual control
Manual control
Manual control
Rear window defroster switch
No change
No change
No change
No change
No change

*1  :7-speed type airflow volume control dial
*2  :4-speed type airflow volume control dial
*3  :With MAX A/C control
*4  :If the MAX A/C control conditions are met, it switches to MAX A/C control.
