FRONT SEAT
id091300009000
Purpose, Function
• The front seats are structured to reduce impact force applied to the head of the occupant in a vehicle collision.
• 6-WAY power seats have been adopted on the driver's seat. (With power seat system) (See
POWER SEAT SYSTEM.)
• A seat warmer system has been adopted on the front seat backs and front seat cushion. (With seat warmer system) (See
SEAT WARMER SYSTEM.)
Construction, Operation

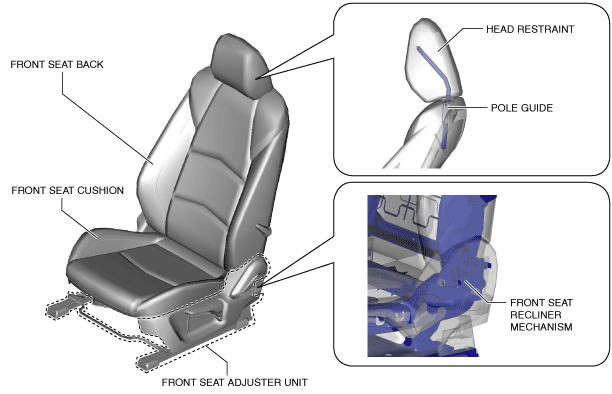

• The front seats reduce the impact force applied to the head of the occupant in a vehicle collision by:
-
― Improving the rigidity of the pole guides.
― Setting the head restraints so that they tilt forward.
• The front seat adjuster unit has improved rigidity by:
-
― Locating the front seat recliner mechanism to the area around the connection part on both sides of the front seat back.
― The front seat cushion.
• As a result, the backward lean of the front seat back when the occupant's body is pushed backward in a vehicle collision is controlled.

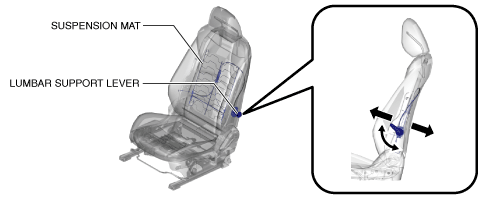

• Suspension mats built into the front seat backs support the occupant’s back over a wide area.
• The suspension mat can be moved forward and rearward in conjunction with the lumbar support lever operation.
Fail-safe
• Function not equipped.
