REAR CONSOLE DISASSEMBLY/ASSEMBLY
id091700898600
1. Disassemble in the order indicated in the table.
am3zzw00018019
|
|
1
|
Console panel
|
|
2
|
Screw
|
|
3
|
Side panel (See Side Panel Removal Note.)
|
|
4
|
Rear console box
|
|
5
|
Pin (See CONSOLE LID REMOVAL/INSTALLATION.)
|
|
6
|
Rear console lid (See CONSOLE LID REMOVAL/INSTALLATION.)
|
|
7
|
Console lid inner (See CONSOLE LID REMOVAL/INSTALLATION.)
|
|
8
|
Screw
|
|
9
|
Console lid hinge
|
2. Assemble in the reverse order of disassembly.
Side Panel Removal Note

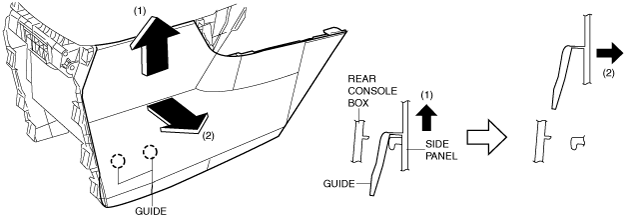

1. Move the side panel in the order of arrows (1) and (2) shown in the figure and remove the guide from the rear console box.
am3uuw00012028
|
