HEADLIGHT AUTO-LEVELING MALFUNCTION INDICATOR LIGHT


id091800013800


Purpose

•  The headlight auto-leveling malfunction indicator light notifies the user that a malfunction occurs in the headlight auto leveling system.

Function

•  The headlight auto-leveling malfunction indicator light flashes when a malfunction occurs in the headlight auto leveling system.

Construction

•  The headlight auto-leveling malfunction indicator light is equipped in the instrument cluster.
am3zzn00003961
•  For vehicles with center display, a warning message in the center display is displayed when the headlight auto-leveling malfunction indicator light is flashed. For the message content and verification method, refer to the CENTER DISPLAY. (See CENTER DISPLAY [WITH CENTER DISPLAY].)
•  For instrument cluster type B, a warning message in the multi-information display is displayed simultaneously when the headlight auto-leveling malfunction indicator light flashes. For the message content, refer to the MULTI-INFORMATION DISPLAY. (See MULTI-INFORMATION DISPLAY.)

Operation

Note
•  When the ignition is switched ON (engine off or on), the auto leveling control module illuminates the headlight auto-leveling malfunction indicator light for 3 s to check the light bulb and notifies that the headlight auto-leveling malfunction indicator light bulb is normal.

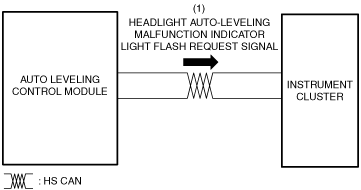

1.  The auto leveling control module sends a headlight auto-leveling malfunction indicator light flash request signal to the instrument cluster via the CAN signal when a malfunction occurs in the headlight auto leveling system.
2.  The instrument cluster flashes the headlight auto-leveling malfunction indicator light based on the headlight auto-leveling malfunction indicator light flash request signal.
am3zzn00003962

Fail-safe

•  Function not equipped.
