i-stop CONTROL

id111100000100

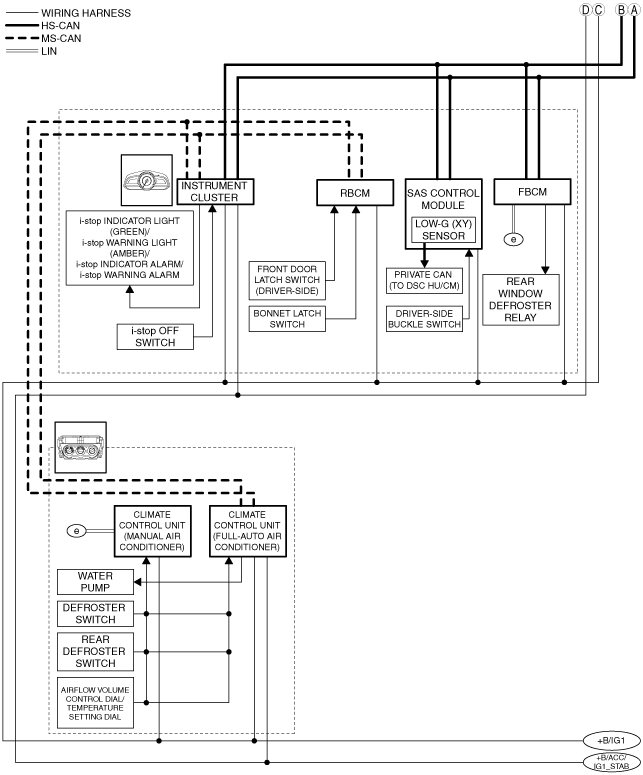

i-stop Control Outline


SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5

Without i-ELOOP (ATX)

am3zzn00005226
am3zzn00005119

Without i-ELOOP (MTX)

am3zzn00004875
am3zzn00005119

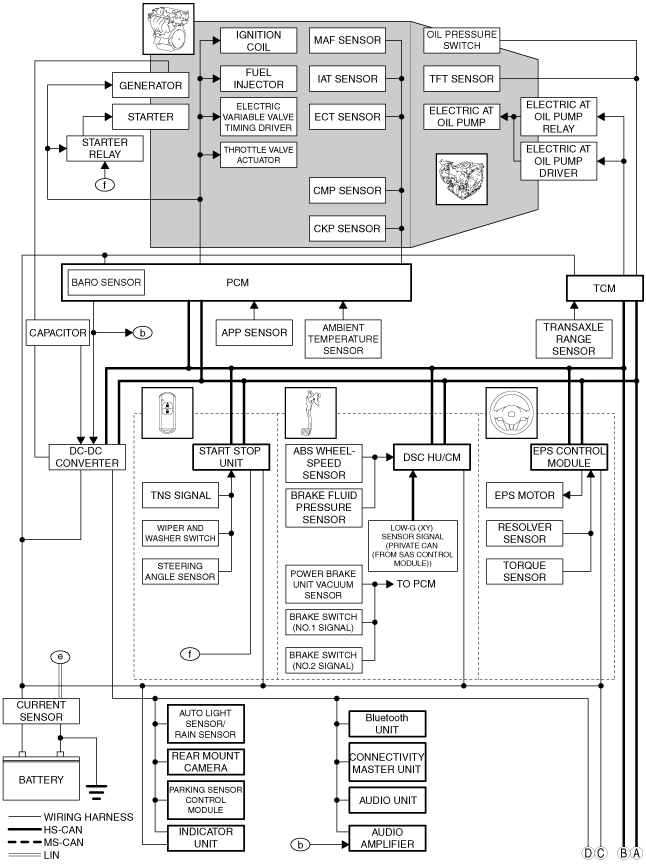

With i-ELOOP (ATX)

am3zzn00005227
am3zzn00005119

With i-ELOOP (MTX)

am3zzn00004876
am3zzn00005119


SKYACTIV-D 1.5

ATX

am3zzn00005122
am3zzn00005119

MTX

am3zzn00005123
am3zzn00005119


SKYACTIV-D 2.2

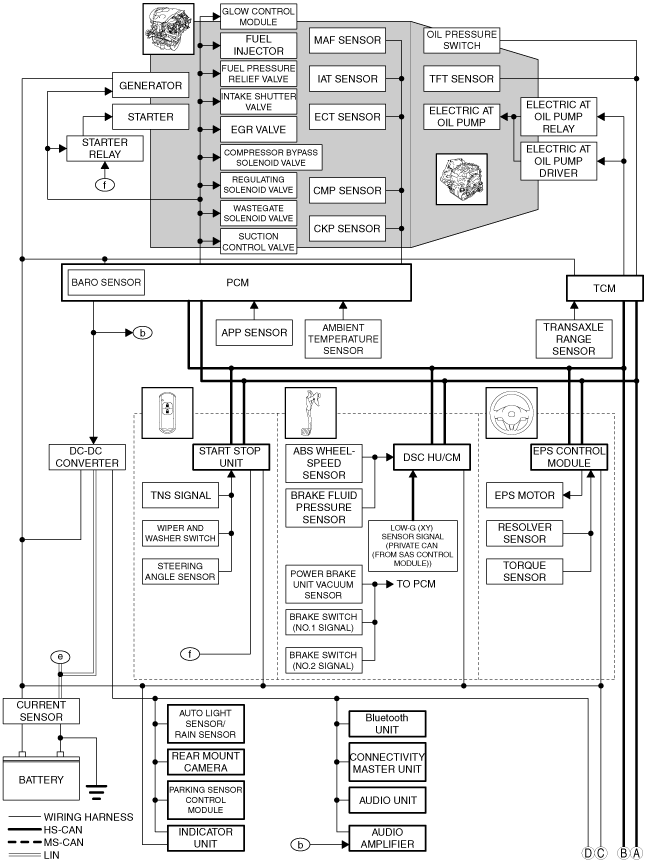

Without i-ELOOP (ATX)

am3zzn00005228
am3zzn00005119

Without i-ELOOP (MTX)

am3zzn00004877
am3zzn00005119

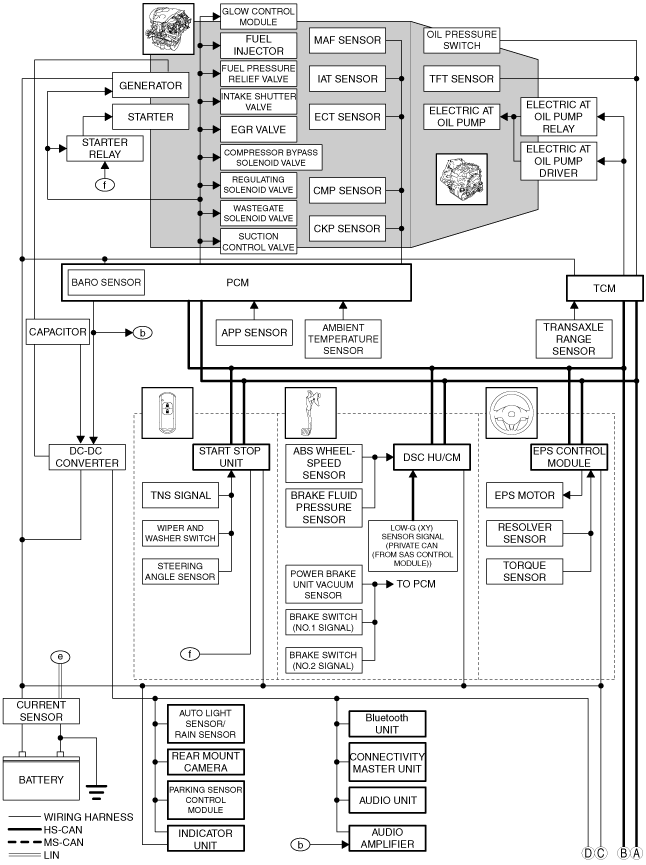

With i-ELOOP (ATX)

am3zzn00004920
am3zzn00005119

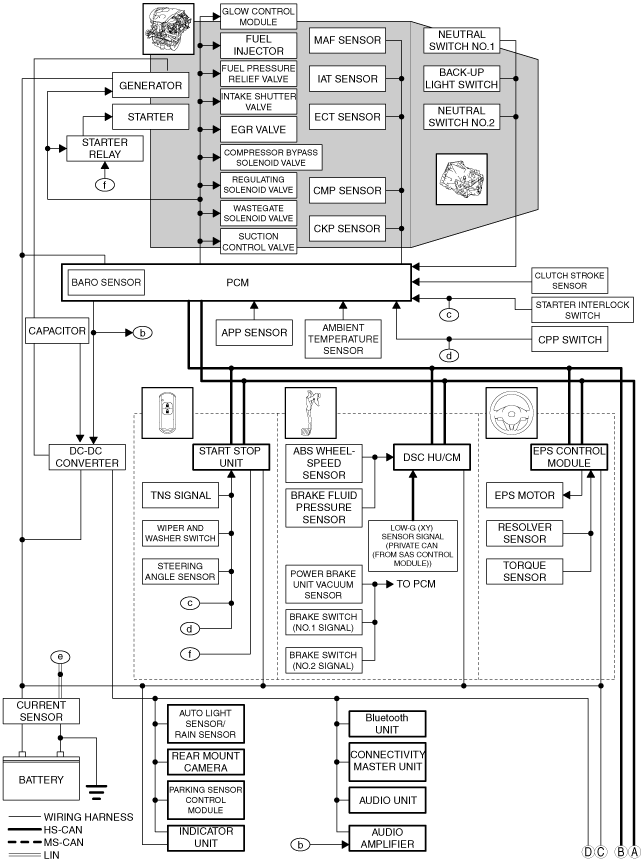

With i-ELOOP (MTX)

am3zzn00004921
am3zzn00005119


i-stop Control modules

•  i-stop is controlled by the following modules. For details on each of the controls, refer to the control content for each module.

Module name

Reference
PCM
SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5
(See i-stop CONTROL [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See DC-DC CONVERTER CONTROL [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See i-stop WARNING LIGHT (AMBER) [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See i-stop INDICATOR ALARM [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
(See i-stop WARNING ALARM [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
SKYACTIV-D 1.5
(See i-stop CONTROL [SKYACTIV-D 1.5].)
(See DC-DC CONVERTER CONTROL [SKYACTIV-D 1.5].)
(See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-D 1.5].)
(See i-stop WARNING LIGHT (AMBER) [SKYACTIV-D 1.5].)
(See i-stop INDICATOR ALARM [SKYACTIV-D 1.5].)
(See i-stop WARNING ALARM [SKYACTIV-D 1.5].)
SKYACTIV-D 2.2
(See i-stop CONTROL [SKYACTIV-D 2.2].)
(See DC-DC CONVERTER CONTROL [SKYACTIV-D 2.2].)
(See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-D 2.2].)
(See i-stop WARNING LIGHT (AMBER) [SKYACTIV-D 2.2].)
(See i-stop INDICATOR ALARM [SKYACTIV-D 2.2].)
(See i-stop WARNING ALARM [SKYACTIV-D 2.2].)
DC-DC CONVERTER (i-ELOOP)
(See i-ELOOP [i-ELOOP].)
DSC HU/CM
(See VEHICLE ROLL PREVENTION FUNCTION.)
TCM (ATX)
(See ELECTRIC AT OIL PUMP [FW6A-EL].)
(See ELECTRIC AT OIL PUMP [CW6A-EL].)
(See ELECTRIC AT OIL PUMP [EW6A-EL].)
(See ELECTRIC AT OIL PUMP [GW6A-EL].)
EPS CONTROL MODULE
(See ELECTRIC POWER STEERING (EPS) CONTROL MODULE.)
SAS CONTROL MODULE
(See SAS CONTROL MODULE.)
INSTRUMENT CLUSTER
(See INSTRUMENT CLUSTER.)
START STOP UNIT
(See START STOP UNIT.)
FRONT BODY CONTROL MODULE (FBCM)
(See FRONT BODY CONTROL MODULE (FBCM).)
REAR BODY CONTROL MODULE (RBCM)
(See REAR BODY CONTROL MODULE (RBCM).)
