INSTRUMENT CLUSTER

id092200018500

Outline

•  TYPE A (Digital speedometer type)

Specification

―  Digital speedometer

―  Analog tachometer

―  Odometer/tripmeter

―  Fuel gauge

―  Indicator/warning lights

―  Alarm

―  Trip computer

―  Active driving display

•  TYPE B (Analog speedometer type (with tachometer and multi-information display))

Specification

―  Analog speedometer

―  Digital tachometer

―  Odometer/tripmeter

―  Fuel gauge

―  Indicator/warning lights

―  Multi-information display

―  Alarm

―  Trip computer

•  TYPE C (Analog speedometer type (with tachometer, without multi-information display))

Specification

―  Analog speedometer

―  Digital tachometer

―  Odometer/tripmeter

―  Fuel gauge

―  Indicator/warning lights

―  Alarm

―  Trip computer

•  TYPE D (Analog speedometer type (without tachometer))

Specification

―  Analog speedometer

―  Odometer/tripmeter

―  Fuel gauge

―  Indicator/warning lights

―  Alarm

Function

―  Vehicle speed (speedometer)

―  Engine speed (tachometer)

―  Remaining fuel quantity (fuel gauge)

―  Traveled distance (odometer/tripmeter)

―  Average fuel economy, average vehicle speed, instantaneous fuel economy, remaining distance to empty (trip computer)

―  Indicator/warning lights

Speedometer display function

•  The instrument cluster controls the speedometer based on the vehicle speed signal sent via CAN transmission from the PCM, and displays the current vehicle speed. For details on the speedometer, refer to SPEEDOMETER. (See SPEEDOMETER.)

Tachometer display function

•  The instrument cluster controls the tachometer based on the engine speed signal sent via CAN transmission from the PCM, and displays the current engine speed. For details on the tachometer, refer to TACHOMETER. (See TACHOMETER.)

Fuel gauge display function

•  The instrument cluster displays the remaining fuel quantity based on the fuel gauge resistance signal sent via CAN transmission from the RBCM, and the fuel injection amount signal sent via CAN transmission from the PCM. For details on the fuel gauge, refer to FUEL GAUGE. (See FUEL GAUGE.)

Odometer/tripmeter display function

•  The instrument cluster displays the total traveled distance/traveled distance over a specific interval based on the travel distance signal sent via CAN transmission from the PCM. For details on the odometer/tripmeter, refer to ODOMETER/TRIPMETER. (See ODOMETER/TRIPMETER.)

Trip computer calculation function

•  The instrument cluster calculates the average fuel economy, average vehicle speed, instantaneous fuel economy, and the remaining distance to empty, and displays it on the LCD in the instrument cluster. For details on the trip computer, refer to TRIP COMPUTER INFORMATION SYSTEM. (See TRIP COMPUTER INFORMATION SYSTEM.)

Warning/Indicator lights illuminate/flash function

•  The instrument cluster illuminates/flashes the indicator/warning lights to notify the user of the vehicle system conditions.

•  The types of indicator/warning lights are as follows: Refer to reference for details on each indicator/warning light.

•  For vehicles with the center display, a warning message in the center display is displayed when the indicator/warning light is turned on or flashed. For the message content and verification method, refer to the CENTER DISPLAY. (See CENTER DISPLAY [WITH CENTER DISPLAY].)

•  For vehicles with the multi-information display, a warning message in the multi-information display is displayed when the indicator/warning light is turned on or flashed. For the message content and verification method, refer to the MULTI-INFORMATION DISPLAY. (See MULTI-INFORMATION DISPLAY.)

TYPE A (Digital speedometer type)

am3zzn00004646

No.	Warning/Indicator lights	Name	Messages in center display are displayed when indicator/warning light is turned on or flashed	Comment	Warning/indicator lights which illuminate during initial check	Reference
1		Power steering malfunction indicator light	×	—	×	(See POWER STEERING MALFUNCTION INDICATOR LIGHT.)
2		Smart brake support/smart city brake support (SBS/SCBS) OFF indicator light	—	With SBS/SCBS	×	(See SMART CITY BRAKE SUPPORT (SCBS) OFF SWITCH, SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) OFF INDICATOR LIGHT.)
3		Diesel particulate filter indicator light	×	SKYACTIV-D 1.5, SKYACTIV-D 2.2	×	(See DIESEL PARTICULATE FILTER INDICATOR LIGHT [SKYACTIV-D 1.5].) (See DIESEL PARTICULATE FILTER INDICATOR LIGHT [SKYACTIV-D 2.2].)
4		Shift position indicator light/gear position indicator	—	ATX	—	(See SHIFT POSITION INDICATOR LIGHT FUNCTION [FN4A-EL].) (See GEAR POSITION INDICATOR FUNCTION [FN4A-EL].) (See SHIFT POSITION INDICATOR LIGHT [FW6A-EL].) (See GEAR POSITION INDICATION [FW6A-EL].) (See SHIFT POSITION INDICATOR LIGHT [GW6A-EL].) (See GEAR POSITION INDICATION [GW6A-EL].) (See SHIFT POSITION INDICATION [CW6A-EL].) (See GEAR POSITION INDICATION [CW6A-EL].)
		Gear shift indicator	—	MTX	—	(See GEAR SHIFT INDICATOR [MZR 1.6].) (See GEAR SHIFT INDICATOR [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See GEAR SHIFT INDICATOR [SKYACTIV-D 1.5].) (See GEAR SHIFT INDICATOR [SKYACTIV-D 2.2].)
5		Rear fog light indicator light	—	With rear fog light	—	(See REAR FOG LIGHT INDICATOR LIGHT.)
6		Lights-on indicator light	—	—	—	(See LIGHTS-ON INDICATOR LIGHT.)
7		•  Smart brake support/smart city brake support (SBS/SCBS) indicator light (red) •  Smart brake support/smart city brake support (SBS/SCBS) warning light (amber)	×	With SBS/SCBS	×	(See SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) INDICATOR LIGHT, SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) WARNING LIGHT.)
8		i-ELOOP indicator light	×	With i-ELOOP	—	(See i-ELOOP INDICATOR LIGHT [i-ELOOP].)
9		Door-ajar warning light	—	—	—	(See DOOR-AJAR WARNING LIGHT.)
10		Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red)	×	—	×	(See LOW ENGINE COOLANT TEMPERATURE INDICATOR LIGHT (BLUE)/HIGH ENGINE COOLANT TEMPERATURE WARNING LIGHT (RED).)
11		Turn signal/hazard warning indicator lights	—	—	—	(See TURN SIGNAL/HAZARD WARNING INDICATOR LIGHTS.)
12		i-stop warning light (amber)/i-stop indicator light (green)	×	With i-stop system	×	(See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See i-stop WARNING LIGHT (AMBER) [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-D 1.5].) (See i-stop WARNING LIGHT (AMBER) [SKYACTIV-D 1.5].) (See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-D 2.2].) (See i-stop WARNING LIGHT (AMBER) [SKYACTIV-D 2.2].)
13		Headlight high-beam indicator light	—	—	—	(See HEADLIGHT HIGH-BEAM INDICATOR LIGHT.)
14		DSC OFF indicator light	—	—	×	(See DSC OFF SWITCH, DSC OFF INDICATOR LIGHT.)
15		TCS/DSC indicator light	×	—	×	(See TCS/DSC INDICATOR LIGHT.)
16		Cruise main indicator light (amber)/cruise set indicator light (green)	—	With cruise control system	—	(See CRUISE MAIN INDICATOR LIGHT (AMBER), CRUISE SET INDICATOR LIGHT (GREEN) [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See CRUISE MAIN INDICATOR LIGHT (AMBER), CRUISE SET INDICATOR LIGHT (GREEN) [SKYACTIV-D 1.5].) (See CRUISE MAIN INDICATOR LIGHT (AMBER), CRUISE SET INDICATOR LIGHT (GREEN) [SKYACTIV-D 2.2].) (See CRUISE MAIN INDICATOR LIGHT (AMBER), CRUISE SET INDICATOR LIGHT (GREEN) [MZR 1.6].)
		Mazda Radar Cruise Control (MRCC) warning light (amber)/Mazda Radar Cruise Control (MRCC) indicatorlight (green)	×	With MRCC	×	(See MAZDA RADAR CRUISE CONTROL (MRCC) WARNING LIGHT/INDICATOR LIGHT [MAZDA RADAR CRUISE CONTROL (MRCC) SYSTEM].)
17		AFS OFF indicator light	×	With AFS	×	(See AFS OFF INDICATOR LIGHT.)
18		KEY warning light (red)/KEY indicator light (green)	×	—	—	(See KEY WARNING LIGHT (RED)/KEY INDICATOR LIGHT (GREEN).)
19		Adjustable speed limiter main indicator light (amber)/adjustable speed limiter set indicator light (green)	—	With adjustable speed limiter	—	(See ADJUSTABLE SPEED LIMITER MAIN INDICATOR LIGHT (AMBER), ADJUSTABLE SPEED LIMITER SET INDICATOR LIGHT (GREEN) [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See ADJUSTABLE SPEED LIMITER MAIN INDICATOR LIGHT (AMBER), ADJUSTABLE SPEED LIMITER SET INDICATOR LIGHT (GREEN) [SKYACTIV-D 1.5].) (See ADJUSTABLE SPEED LIMITER MAIN INDICATOR LIGHT (AMBER), ADJUSTABLE SPEED LIMITER SET INDICATOR LIGHT (GREEN) [SKYACTIV-D 2.2].)
20		RVM warning light (amber)/RVM indicator light (green)	×	With Rear Vehicle Monitoring (RVM) System	×	(See RVM WARNING LIGHT (AMBER)/RVM INDICATOR LIGHT (GREEN).)
		BSM OFF indicator light	×	With BSM	×	(See BLIND SPOT MONITORING (BSM) OFF INDICATOR LIGHT.)
21		Brake system warning light	×	—	×	(See BRAKE SYSTEM/ABS WARNING LIGHT.)
22		Low fuel warning light	×	—	—	(See LOW FUEL WARNING LIGHT.)
23		Seat belt warning light	—	—	—	(See SEAT BELT WARNING LIGHT.)
24		Headlight auto-levelling malfunction indicator light	×	With headlight auto levelling system, without AFS	×	(See HEADLIGHT AUTO-LEVELING MALFUNCTION INDICATOR LIGHT.)
		120 km/h warning light	—	With 120 km/h warning light	×	(See 120 km/h WARNING LIGHT.)
25		ABS warning light	×	—	×	(See BRAKE SYSTEM/ABS WARNING LIGHT.)
26		Master warning light	×	—	×	(See MASTER WARNING LIGHT.)
27		Low washer fluid level warning light	×	With washer fluid-level sensor	—	(See WASHER FLUID-LEVEL SENSOR.)
28		Automatic transaxle warning light	×	ATX	×	(See AUTOMATIC TRANSAXLE WARNING LIGHT FUNCTION [FN4A-EL].) (See AUTOMATIC TRANSAXLE WARNING LIGHT [FW6A-EL].) (See AUTOMATIC TRANSAXLE WARNING LIGHT [GW6A-EL].)
29		Charging system warning light	×	—	×	(See CHARGING SYSTEM WARNING LIGHT FUNCTION [MZR 1.6].) (See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-D 1.5].) (See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-D 2.2].)
30		Lane departure warning system (LDWS) warning light (amber)/lane departure warning system (LDWS) indicator light (green)	×	With LDWS	×	(See LDWS INDICATOR LIGHT (GREEN)/LDWS WARNING LIGHT (AMBER).)
31		High beam control (HBC) system warning light (amber)/high beam control (HBC) system indicator light (green)	×	With HBC system	×	(See HBC INDICATOR LIGHT (GREEN)/HBC WARNING LIGHT (AMBER).)
32		Glow indicator light	×	SKYACTIV-D 1.5, SKYACTIV-D 2.2	×	(See GLOW INDICATOR LIGHT [SKYACTIV-D 1.5].) (See GLOW INDICATOR LIGHT [SKYACTIV-D 2.2].)
33		Engine oil warning light	×	—	×	(See ENGINE OIL WARNING LIGHT [MZR 1.6].) (See ENGINE OIL WARNING LIGHT [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See ENGINE OIL WARNING LIGHT [SKYACTIV-D 1.5].) (See ENGINE OIL WARNING LIGHT [SKYACTIV-D 2.2].)
34		Wrench warning indicator light	×	—	×	(See WRENCH WARNING INDICATOR LIGHT [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See WRENCH INDICATOR LIGHT [SKYACTIV-D 1.5].) (See WRENCH WARNING INDICATOR LIGHT [SKYACTIV-D 2.2].)
35		Air bag/front seat belt pretensioner system warning light	×	—	×	(See AIR BAG SYSTEM WARNING LIGHT.)
36		Security indicator light	—	—	×	(See SECURITY INDICATOR LIGHT.)
37		Check engine light	×	—	×	(See CHECK ENGINE LIGHT [MZR 1.6].) (See CHECK ENGINE LIGHT [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See CHECK ENGINE LIGHT [SKYACTIV-D 1.5].) (See CHECK ENGINE LIGHT [SKYACTIV-D 2.2].)
38		Tire pressure monitoring system warning light	×	With TPMS	×	(See TIRE PRESSURE MONITORING SYSTEM WARNING LIGHT.)
39		Front fog light indicator light	×	With front fog light	×	(See FRONT FOG LIGHTS INDICATOR LIGHT.)

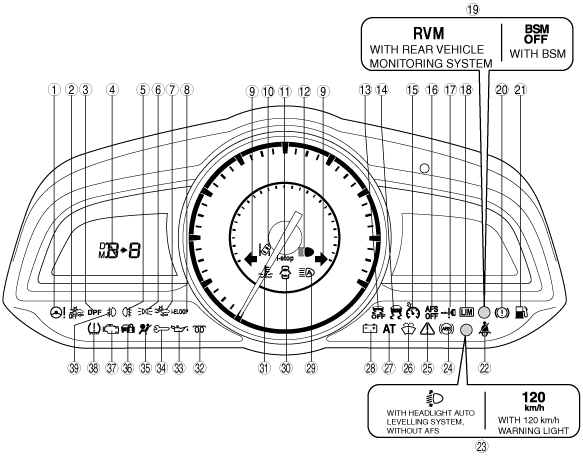

TYPE B (Analog speedometer type (with tachometer and multi-information display))

am3zzn00004649

No.	Warning/Indicator lights	Name	Messages in multi-information display are displayed when indicator/warning light is turned on or flashed	Comment	Warning/indicator lights which illuminate during initial check	Reference
1		Power steering malfunction indicator light	×	—	×	(See POWER STEERING MALFUNCTION INDICATOR LIGHT.)
2		Smart brake support/smart city brake support (SBS/SCBS) OFF indicator light	—	With SBS/SCBS	×	(See SMART CITY BRAKE SUPPORT (SCBS) OFF SWITCH, SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) OFF INDICATOR LIGHT.)
3		Diesel particulate filter indicator light	×	SKYACTIV-D 1.5, SKYACTIV-D 2.2	×	(See DIESEL PARTICULATE FILTER INDICATOR LIGHT [SKYACTIV-D 1.5].) (See DIESEL PARTICULATE FILTER INDICATOR LIGHT [SKYACTIV-D 2.2].)
4		Shift position indicator light/gear position indicator	—	ATX	—	(See SHIFT POSITION INDICATOR LIGHT FUNCTION [FN4A-EL].) (See GEAR POSITION INDICATOR FUNCTION [FN4A-EL].) (See SHIFT POSITION INDICATOR LIGHT [FW6A-EL].) (See GEAR POSITION INDICATION [FW6A-EL].) (See SHIFT POSITION INDICATOR LIGHT [GW6A-EL].) (See GEAR POSITION INDICATION [GW6A-EL].) (See SHIFT POSITION INDICATION [CW6A-EL].) (See GEAR POSITION INDICATION [CW6A-EL].)
		Gear shift indicator	—	MTX	—	(See GEAR SHIFT INDICATOR [MZR 1.6].) (See GEAR SHIFT INDICATOR [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See GEAR SHIFT INDICATOR [SKYACTIV-D 1.5].) (See GEAR SHIFT INDICATOR [SKYACTIV-D 2.2].)
5		Rear fog light indicator light	—	With rear fog light	—	(See REAR FOG LIGHT INDICATOR LIGHT.)
6		Lights-on indicator light	—	—	—	(See LIGHTS-ON INDICATOR LIGHT.)
7		•  Smart brake support/smart city brake support (SBS/SCBS) indicator light (red) •  Smart brake support/smart city brake support (SBS/SCBS) warning light (amber)	×	With SBS/SCBS	×	(See SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) INDICATOR LIGHT, SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) WARNING LIGHT.)
8		i-ELOOP indicator light	×	With i-ELOOP	—	(See i-ELOOP INDICATOR LIGHT [i-ELOOP].)
9		Turn signal/hazard warning indicator lights	—	—	—	(See TURN SIGNAL/HAZARD WARNING INDICATOR LIGHTS.)
10		Lane departure warning system (LDWS) warning light (amber)/lane departure warning system (LDWS) indicator light (green)	×	With LDWS	×	(See LDWS INDICATOR LIGHT (GREEN)/LDWS WARNING LIGHT (AMBER).)
11		i-stop warning light (amber)/i-stop indicator light (green)	×	With i-stop system	×	(See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See i-stop WARNING LIGHT (AMBER) [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-D 1.5].) (See i-stop WARNING LIGHT (AMBER) [SKYACTIV-D 1.5].) (See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-D 2.2].) (See i-stop WARNING LIGHT (AMBER) [SKYACTIV-D 2.2].)
12		Headlight high-beam indicator light	—	—	—	(See HEADLIGHT HIGH-BEAM INDICATOR LIGHT.)
13		DSC OFF indicator light	—	—	×	(See DSC OFF SWITCH, DSC OFF INDICATOR LIGHT.)
14		TCS/DSC indicator light	×	—	×	(See TCS/DSC INDICATOR LIGHT.)
15		Cruise main indicator light (amber)/cruise set indicator light (green)	—	With cruise control system	—	(See CRUISE MAIN INDICATOR LIGHT (AMBER), CRUISE SET INDICATOR LIGHT (GREEN) [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See CRUISE MAIN INDICATOR LIGHT (AMBER), CRUISE SET INDICATOR LIGHT (GREEN) [SKYACTIV-D 1.5].) (See CRUISE MAIN INDICATOR LIGHT (AMBER), CRUISE SET INDICATOR LIGHT (GREEN) [SKYACTIV-D 2.2].) (See CRUISE MAIN INDICATOR LIGHT (AMBER), CRUISE SET INDICATOR LIGHT (GREEN) [MZR 1.6].)
16		AFS OFF indicator light	×	With AFS	×	(See AFS OFF INDICATOR LIGHT.)
17		KEY warning light (red)/KEY indicator light (green)	×	—	—	(See KEY WARNING LIGHT (RED)/KEY INDICATOR LIGHT (GREEN).)
18		Adjustable speed limiter main indicator light (amber)/adjustable speed limiter set indicator light (green)	—	With adjustable speed limiter system	—	(See ADJUSTABLE SPEED LIMITER MAIN INDICATOR LIGHT (AMBER), ADJUSTABLE SPEED LIMITER SET INDICATOR LIGHT (GREEN) [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See ADJUSTABLE SPEED LIMITER MAIN INDICATOR LIGHT (AMBER), ADJUSTABLE SPEED LIMITER SET INDICATOR LIGHT (GREEN) [SKYACTIV-D 1.5].) (See ADJUSTABLE SPEED LIMITER MAIN INDICATOR LIGHT (AMBER), ADJUSTABLE SPEED LIMITER SET INDICATOR LIGHT (GREEN) [SKYACTIV-D 2.2].)
19		RVM warning light (amber)/RVM indicator light (green)	×	With Rear Vehicle Monitoring (RVM) System	×	(See RVM WARNING LIGHT (AMBER)/RVM INDICATOR LIGHT (GREEN).)
		BSM OFF indicator light	×	With BSM	×	(See BLIND SPOT MONITORING (BSM) OFF INDICATOR LIGHT.)
20		Brake system warning light	×	—	×	(See BRAKE SYSTEM/ABS WARNING LIGHT.)
21		Low fuel warning light	×	—	—	(See LOW FUEL WARNING LIGHT.)
22		Seat belt warning light	—	—	—	(See SEAT BELT WARNING LIGHT.)
23		Headlight auto-levelling malfunction indicator light	×	With headlight auto levelling system, without AFS	×	(See HEADLIGHT AUTO-LEVELING MALFUNCTION INDICATOR LIGHT.)
		120 km/h warning light	—	With 120 km/h warning light	×	(See 120 km/h WARNING LIGHT.)
24		ABS warning light	×	—	×	(See BRAKE SYSTEM/ABS WARNING LIGHT.)
25		Master warning light	×	—	×	(See MASTER WARNING LIGHT.)
26		Low washer fluid level warning light	×	With washer fluid-level sensor	—	(See WASHER FLUID-LEVEL SENSOR.)
27		Automatic transaxle warning light	×	ATX	×	(See AUTOMATIC TRANSAXLE WARNING LIGHT FUNCTION [FN4A-EL].) (See AUTOMATIC TRANSAXLE WARNING LIGHT [FW6A-EL].) (See AUTOMATIC TRANSAXLE WARNING LIGHT [GW6A-EL].)
28		Charging system warning light	×	—	×	(See CHARGING SYSTEM WARNING LIGHT FUNCTION [MZR 1.6].) (See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-D 1.5].) (See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-D 2.2].)
29		High beam control (HBC) system warning light (amber)/high beam control (HBC) system indicator light (green)	×	With HBC system	×	(See HBC INDICATOR LIGHT (GREEN)/HBC WARNING LIGHT (AMBER).)
30		Door-ajar warning light	—	—	—	(See DOOR-AJAR WARNING LIGHT.)
31		Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red)	×	—	×	(See LOW ENGINE COOLANT TEMPERATURE INDICATOR LIGHT (BLUE)/HIGH ENGINE COOLANT TEMPERATURE WARNING LIGHT (RED).)
32		Glow indicator light	×	SKYACTIV-D 1.5, SKYACTIV-D 2.2	×	(See GLOW INDICATOR LIGHT [SKYACTIV-D 1.5].) (See GLOW INDICATOR LIGHT [SKYACTIV-D 2.2].)
33		Engine oil warning light	×	—	×	(See ENGINE OIL WARNING LIGHT [MZR 1.6].) (See ENGINE OIL WARNING LIGHT [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See ENGINE OIL WARNING LIGHT [SKYACTIV-D 1.5].) (See ENGINE OIL WARNING LIGHT [SKYACTIV-D 2.2].)
34		Wrench warning indicator light	×	—	×	(See WRENCH WARNING INDICATOR LIGHT [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See WRENCH INDICATOR LIGHT [SKYACTIV-D 1.5].) (See WRENCH WARNING INDICATOR LIGHT [SKYACTIV-D 2.2].)
35		Air bag/front seat belt pretensioner system warning light	×	—	×	(See AIR BAG SYSTEM WARNING LIGHT.)
36		Security indicator light	—	—	×	(See SECURITY INDICATOR LIGHT.)
37		Check engine light	×	—	×	(See CHECK ENGINE LIGHT [MZR 1.6].) (See CHECK ENGINE LIGHT [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See CHECK ENGINE LIGHT [SKYACTIV-D 1.5].) (See CHECK ENGINE LIGHT [SKYACTIV-D 2.2].)
38		Tire pressure monitoring system warning light	×	With TPMS	×	(See TIRE PRESSURE MONITORING SYSTEM WARNING LIGHT.)
39		Front fog light indicator light	×	With front fog light	×	(See FRONT FOG LIGHTS INDICATOR LIGHT.)

TYPE C (Analog speedometer type (with tachometer, without multi-information display))

am3zzn00004649

No.	Warning/Indicator lights	Name	Comment	Warning/indicator lights which illuminate during initial check	Reference
1		Power steering malfunction indicator light	—	×	(See POWER STEERING MALFUNCTION INDICATOR LIGHT.)
2		Smart brake support/smart city brake support (SBS/SCBS) OFF indicator light	With SBS/SCBS	×	(See SMART CITY BRAKE SUPPORT (SCBS) OFF SWITCH, SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) OFF INDICATOR LIGHT.)
3		Diesel particulate filter indicator light	SKYACTIV-D 1.5, SKYACTIV-D 2.2	×	(See DIESEL PARTICULATE FILTER INDICATOR LIGHT [SKYACTIV-D 1.5].) (See DIESEL PARTICULATE FILTER INDICATOR LIGHT [SKYACTIV-D 2.2].)
4		Shift position indicator light/gear position indicator	ATX	—	(See SHIFT POSITION INDICATOR LIGHT FUNCTION [FN4A-EL].) (See GEAR POSITION INDICATOR FUNCTION [FN4A-EL].) (See SHIFT POSITION INDICATOR LIGHT [FW6A-EL].) (See GEAR POSITION INDICATION [FW6A-EL].) (See SHIFT POSITION INDICATOR LIGHT [GW6A-EL].) (See GEAR POSITION INDICATION [GW6A-EL].) (See SHIFT POSITION INDICATION [CW6A-EL].) (See GEAR POSITION INDICATION [CW6A-EL].)
		Gear shift indicator	MTX	—	(See GEAR SHIFT INDICATOR [MZR 1.6].) (See GEAR SHIFT INDICATOR [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See GEAR SHIFT INDICATOR [SKYACTIV-D 1.5].) (See GEAR SHIFT INDICATOR [SKYACTIV-D 2.2].)
5		Rear fog light indicator light	With rear fog light	—	(See REAR FOG LIGHT INDICATOR LIGHT.)
6		Lights-on indicator light	—	—	(See LIGHTS-ON INDICATOR LIGHT.)
7		•  Smart brake support/smart city brake support (SBS/SCBS) indicator light (red) •  Smart brake support/smart city brake support (SBS/SCBS) warning light (amber)	With SBS/SCBS	×	(See SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) INDICATOR LIGHT, SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) WARNING LIGHT.)
8		i-ELOOP indicator light	With i-ELOOP	—	(See i-ELOOP INDICATOR LIGHT [i-ELOOP].)
9		Turn signal/hazard warning indicator lights	—	—	(See TURN SIGNAL/HAZARD WARNING INDICATOR LIGHTS.)
10		Lane departure warning system (LDWS) warning light (amber)/lane departure warning system (LDWS) indicator light (green)	With LDWS	×	(See LDWS INDICATOR LIGHT (GREEN)/LDWS WARNING LIGHT (AMBER).)
11		i-stop warning light (amber)/i-stop indicator light (green)	With i-stop system	×	(See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See i-stop WARNING LIGHT (AMBER) [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-D 1.5].) (See i-stop WARNING LIGHT (AMBER) [SKYACTIV-D 1.5].) (See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-D 2.2].) (See i-stop WARNING LIGHT (AMBER) [SKYACTIV-D 2.2].)
12		Headlight high-beam indicator light	—	—	(See HEADLIGHT HIGH-BEAM INDICATOR LIGHT.)
13		DSC OFF indicator light	—	×	(See DSC OFF SWITCH, DSC OFF INDICATOR LIGHT.)
14		TCS/DSC indicator light	—	×	(See TCS/DSC INDICATOR LIGHT.)
15		Cruise main indicator light (amber)/cruise set indicator light (green)	With cruise control system	—	(See CRUISE MAIN INDICATOR LIGHT (AMBER), CRUISE SET INDICATOR LIGHT (GREEN) [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See CRUISE MAIN INDICATOR LIGHT (AMBER), CRUISE SET INDICATOR LIGHT (GREEN) [SKYACTIV-D 1.5].) (See CRUISE MAIN INDICATOR LIGHT (AMBER), CRUISE SET INDICATOR LIGHT (GREEN) [SKYACTIV-D 2.2].) (See CRUISE MAIN INDICATOR LIGHT (AMBER), CRUISE SET INDICATOR LIGHT (GREEN) [MZR 1.6].)
16		AFS OFF indicator light	With AFS	×	(See AFS OFF INDICATOR LIGHT.)
17		KEY warning light (red)/KEY indicator light (green)	—	—	(See KEY WARNING LIGHT (RED)/KEY INDICATOR LIGHT (GREEN).)
18		Adjustable speed limiter main indicator light (amber)/adjustable speed limiter set indicator light (green)	With adjustable speed limiter	—	(See ADJUSTABLE SPEED LIMITER MAIN INDICATOR LIGHT (AMBER), ADJUSTABLE SPEED LIMITER SET INDICATOR LIGHT (GREEN) [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See ADJUSTABLE SPEED LIMITER MAIN INDICATOR LIGHT (AMBER), ADJUSTABLE SPEED LIMITER SET INDICATOR LIGHT (GREEN) [SKYACTIV-D 1.5].) (See ADJUSTABLE SPEED LIMITER MAIN INDICATOR LIGHT (AMBER), ADJUSTABLE SPEED LIMITER SET INDICATOR LIGHT (GREEN) [SKYACTIV-D 2.2].)
19		RVM warning light (amber)/RVM indicator light (green)	With Rear Vehicle Monitoring (RVM) System	×	(See RVM WARNING LIGHT (AMBER)/RVM INDICATOR LIGHT (GREEN).)
		BSM OFF indicator light	With BSM	×	(See BLIND SPOT MONITORING (BSM) OFF INDICATOR LIGHT.)
20		Brake system warning light	—	×	(See BRAKE SYSTEM/ABS WARNING LIGHT.)
21		Low fuel warning light	—	—	(See LOW FUEL WARNING LIGHT.)
22		Seat belt warning light	—	—	(See SEAT BELT WARNING LIGHT.)
23		Headlight auto-levelling malfunction indicator light	With headlight auto levelling system, without AFS	×	(See HEADLIGHT AUTO-LEVELING MALFUNCTION INDICATOR LIGHT.)
		120 km/h warning light	With 120 km/h warning light	×	(See 120 km/h WARNING LIGHT.)
24		ABS warning light	—	×	(See BRAKE SYSTEM/ABS WARNING LIGHT.)
25		Master warning light	—	×	(See MASTER WARNING LIGHT.)
26		Low washer fluid level warning light	With washer fluid-level sensor	—	(See WASHER FLUID-LEVEL SENSOR.)
27		Automatic transaxle warning light	ATX	×	(See AUTOMATIC TRANSAXLE WARNING LIGHT FUNCTION [FN4A-EL].) (See AUTOMATIC TRANSAXLE WARNING LIGHT [FW6A-EL].) (See AUTOMATIC TRANSAXLE WARNING LIGHT [GW6A-EL].)
28		Charging system warning light	—	×	(See CHARGING SYSTEM WARNING LIGHT FUNCTION [MZR 1.6].) (See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-D 1.5].) (See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-D 2.2].)
29		High beam control (HBC) system warning light (amber)/high beam control (HBC) system indicator light (green)	With HBC system	×	(See HBC INDICATOR LIGHT (GREEN)/HBC WARNING LIGHT (AMBER).)
30		Door-ajar warning light	—	—	(See DOOR-AJAR WARNING LIGHT.)
31		Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red)	—	×	(See LOW ENGINE COOLANT TEMPERATURE INDICATOR LIGHT (BLUE)/HIGH ENGINE COOLANT TEMPERATURE WARNING LIGHT (RED).)
32		Glow indicator light	SKYACTIV-D 1.5, SKYACTIV-D 2.2	×	(See GLOW INDICATOR LIGHT [SKYACTIV-D 1.5].) (See GLOW INDICATOR LIGHT [SKYACTIV-D 2.2].)
33		Engine oil warning light	—	×	(See ENGINE OIL WARNING LIGHT [MZR 1.6].) (See ENGINE OIL WARNING LIGHT [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See ENGINE OIL WARNING LIGHT [SKYACTIV-D 1.5].) (See ENGINE OIL WARNING LIGHT [SKYACTIV-D 2.2].)
34		Wrench warning indicator light	—	×	(See WRENCH WARNING INDICATOR LIGHT [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See WRENCH INDICATOR LIGHT [SKYACTIV-D 1.5].) (See WRENCH WARNING INDICATOR LIGHT [SKYACTIV-D 2.2].)
35		Air bag/front seat belt pretensioner system warning light	—	×	(See AIR BAG SYSTEM WARNING LIGHT.)
36		Security indicator light	—	×	(See SECURITY INDICATOR LIGHT.)
37		Check engine light	—	×	(See CHECK ENGINE LIGHT [MZR 1.6].) (See CHECK ENGINE LIGHT [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See CHECK ENGINE LIGHT [SKYACTIV-D 1.5].) (See CHECK ENGINE LIGHT [SKYACTIV-D 2.2].)
38		Tire pressure monitoring system warning light	With TPMS	×	(See TIRE PRESSURE MONITORING SYSTEM WARNING LIGHT.)
39		Front fog light indicator light	With front fog light	×	(See FRONT FOG LIGHTS INDICATOR LIGHT.)

TYPE D (Analog speedometer type (without tachometer))

am3zzn00004650

No.	Warning/Indicator lights	Name	Comment	Warning/indicator lights which illuminate during initial check	Reference
1		Power steering malfunction indicator light	—	×	(See POWER STEERING MALFUNCTION INDICATOR LIGHT.)
2		Rear fog light indicator light	With rear fog light	—	(See REAR FOG LIGHT INDICATOR LIGHT.)
3		Front fog light indicator light	With front fog light	×	(See FRONT FOG LIGHTS INDICATOR LIGHT.)
4		Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red)	—	×	(See LOW ENGINE COOLANT TEMPERATURE INDICATOR LIGHT (BLUE)/HIGH ENGINE COOLANT TEMPERATURE WARNING LIGHT (RED).)
5		Headlight high-beam indicator light	—	—	(See HEADLIGHT HIGH-BEAM INDICATOR LIGHT.)
6		Turn signal/hazard warning indicator lights	—	—	(See TURN SIGNAL/HAZARD WARNING INDICATOR LIGHTS.)
7		Lights-on indicator light	—	—	(See LIGHTS-ON INDICATOR LIGHT.)
8		DSC OFF indicator light	—	×	(See DSC OFF SWITCH, DSC OFF INDICATOR LIGHT.)
9		TCS/DSC indicator light	—	×	(See TCS/DSC INDICATOR LIGHT.)
10		Door-ajar warning light	—	—	(See DOOR-AJAR WARNING LIGHT.)
11		KEY warning light (red)/KEY indicator light (green)	—	—	(See KEY WARNING LIGHT (RED)/KEY INDICATOR LIGHT (GREEN).)
12		Brake system warning light	—	×	(See BRAKE SYSTEM/ABS WARNING LIGHT.)
13		Low fuel warning light	—	—	(See LOW FUEL WARNING LIGHT.)
14		Seat belt warning light	—	—	(See SEAT BELT WARNING LIGHT.)
15		120 km/h warning light	With 120 km/h warning light	×	(See 120 km/h WARNING LIGHT.)
16		ABS warning light	—	×	(See BRAKE SYSTEM/ABS WARNING LIGHT.)
17		Master warning light	—	×	(See MASTER WARNING LIGHT.)
18		Low washer fluid level warning light	With washer fluid-level sensor	—	(See WASHER FLUID-LEVEL SENSOR.)
19		Automatic transaxle warning light	ATX	×	(See AUTOMATIC TRANSAXLE WARNING LIGHT FUNCTION [FN4A-EL].) (See AUTOMATIC TRANSAXLE WARNING LIGHT [FW6A-EL].)
20		Charging system warning light	—	×	(See CHARGING SYSTEM WARNING LIGHT FUNCTION [MZR 1.6].) (See CHARGING SYSTEM WARNING LIGHT [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
21		Shift position indicator light/gear position indicator	ATX	—	(See SHIFT POSITION INDICATOR LIGHT FUNCTION [FN4A-EL].) (See GEAR POSITION INDICATOR FUNCTION [FN4A-EL].) (See SHIFT POSITION INDICATOR LIGHT [FW6A-EL].) (See GEAR POSITION INDICATION [FW6A-EL].) (See SHIFT POSITION INDICATION [CW6A-EL].) (See GEAR POSITION INDICATION [CW6A-EL].)
22		Engine oil warning light	—	×	(See ENGINE OIL WARNING LIGHT [MZR 1.6].) (See ENGINE OIL WARNING LIGHT [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
23		Wrench warning indicator light	—	×	(See WRENCH WARNING INDICATOR LIGHT [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
24		Air bag/front seat belt pretensioner system warning light	—	×	(See AIR BAG SYSTEM WARNING LIGHT.)
25		Security indicator light	—	×	(See SECURITY INDICATOR LIGHT.)
26		Check engine light	—	×	(See CHECK ENGINE LIGHT [MZR 1.6].) (See CHECK ENGINE LIGHT [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)
27		Tire pressure monitoring system warning light	With TPMS	×	(See TIRE PRESSURE MONITORING SYSTEM WARNING LIGHT.)

Alarm operation function

•  The instrument cluster sounds the alarm using the buzzer built into the instrument cluster to notify the user of the vehicle conditions.

•  The alarm types are as follows: Refer to reference for details on each alarm.

Name	Reference
Lights-on reminder warning alarm	(See LIGHTS-ON REMINDER WARNING ALARM.)
Seat belt warning alarm	(See SEAT BELT WARNING ALARM.)
Air bag system warning alarm	(See AIR BAG SYSTEM WARNING ALARM.)
Keyless warning alarm	(See KEYLESS WARNING ALARM.)
Tire pressure monitoring sysstem warning alarm (with TPMS)	(See TIRE PRESSURE MONITORING SYSTEM WARNING ALARM.)
Ambient temperature warning alarm	(See AMBIENT TEMPERATURE WARNING ALARM.)
Panel light control indicator alarm	(See PANEL LIGHT CONTROL INDICATOR ALARM.)
Turn and hazard indicator alarm	(See TURN AND HAZARD INDICATOR ALARM.)
Vehicle speed alarm (with vehicle speed alarm)	(See TRIP COMPUTER INFORMATION SYSTEM.)
Smart brake support (SBS) warning alarm (with SBS)	(See SMART BRAKE SUPPORT (SBS).)
Smart city brake support (SCBS) warning alarm (with SCBS)	(See SMART CITY BRAKE SUPPORT (SCBS).)
MRCC warning alarm (with MRCC)	(See MAZDA RADAR CRUISE CONTROL (MRCC) SYSTEM WARNING ALARM [MAZDA RADAR CRUISE CONTROL (MRCC) SYSTEM].)
Adjustable speed limiter warning alarm (with adjustable speed limiter system)	(See ADJUSTABLE SPEED LIMITER WARNING ALARM [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See ADJUSTABLE SPEED LIMITER WARNING ALARM [SKYACTIV-D 1.5].) (See ADJUSTABLE SPEED LIMITER WARNING ALARM [SKYACTIV-D 2.2].)
RCTA warning alarm (with BSM system)	(See BLIND SPOT MONITORING (BSM) SYSTEM.)
Blind spot monitoring (BSM) warning alarm (with BSM system)	(See BLIND SPOT MONITORING (BSM) WARNING ALARM.)
Rear vehicle monitoring (RVM) warning alarm (with rear vehicle monitoring (RVM) system)	(See RVM WARNING ALARM.)
LDWS warning alarm (with lane departure warning system (LDWS))	(See LDWS WARNING ALARM.)
i-stop warning alarm/i-stop indicator alarm (with i-stop)	(See i-stop WARNING ALARM [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See i-stop WARNING ALARM [SKYACTIV-D 1.5].) (See i-stop WARNING ALARM [SKYACTIV-D 2.2].) (See i-stop INDICATOR ALARM [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See i-stop INDICATOR ALARM [SKYACTIV-D 1.5].) (See i-stop INDICATOR ALARM [SKYACTIV-D 2.2].)
i-ELOOP warning alarm	(See i-ELOOP WARNING ALARM [i-ELOOP].)
Power steering warning buzzer	(See POWER STEERING WARNING BUZZER.)
120 km/h warning alarm (with 120 km/h warning alarm)	(See 120 km/h WARNING ALARM.)
Over rev. warning alarm (Type D instrument cluster and MZR 1.6 only)	(See OVER REV. WARNING ALARM [MZR 1.6].)

•  If several alarm request signals are received simultaneously, the alarms sound according to the order of precedence in the following table.

Ignition is switched off

Ignition switch ON (engine off or on)

Panel light control function

•  The instrument cluster changes the panel light brightness according to the ignition switch being turned ON (engine off or on) or the TNS being illuminated. For details on the panel light, refer to PANEL LIGHT. (See PANEL LIGHT.)

Vehicle specification information transmission function

•  The instrument cluster sends vehicle specification information stored during configuration to the following modules via CAN transmission.

―  PCM

―  TCM (ATX)

―  DSC HU/CM

―  EPS control module

―  Start stop unit

―  AFS control module (with AFS)

―  Auto leveling control module (with headlight auto levelling system, without AFS)

―  Laser sensor (with smart city brake support (SCBS))

―  Vehicle control module (V/C-module) (with MRCC system)

―  Parking sensor control module (with parking sensor system)

―  Connectivity master unit (CMU)

―  Audio amplifier (with Bose^®)

―  Rear body control module (RBCM)

―  Climate control unit (with full-auto A/C)

―  Blind spot monitoring (BSM) control module (with BSM system)

Battery discharge suppression function

Note

•  This function is established for suppressing battery discharge during vehicle manufacture and shipment, however, if a room fuse is removed from a vehicle while the total traveled distance is low, the function may operate when the vehicle is in the market.

•  The battery discharge suppression is a function in which the instrument cluster sends a battery discharge suppression signal to the following units based on the room fuse condition and the total traveled distance, and suppresses battery discharge by restricting the operation of electric load for the following units.

Unit	Control description
Front body control module (FBCM)	Running light turns off 5 min after it is illuminated. (Only when engine stopped)
Start stop unit	Ignition is switched off 25 min after ignition is switched to ACC or ON (engine off) (For ATX, only when selector lever is in P position).

•  The battery discharge suppression function operates when the total traveled distance is the threshold or less and the room fuse has been removed.

•  When the battery discharge suppression function is operated, the instrument cluster displays F0-002, F0-HHH, F0-LLL in the odometer/tripmeter of the instrument cluster to indicate that the battery discharge suppression function is operating.

•  The battery discharge suppression function is stopped under the following conditions.

―  Room fuse is installed

―  Engine is started

―  Total traveled distance exceeds the threshold value

Memory function

•  The instrument cluster stores personalization setting information. The stored information is not cleared even if the battery power is disconnected.

Note

•  Because the personalization setting information stored in the instrument cluster cannot be written to a new instrument cluster, if the instrument cluster is replaced, the personalization setting information is at the initial setting. Therefore, before replacing the instrument cluster, verify the personalization setting information and reset the replaced instrument cluster with the information.

Structural View

am3zzn00003992

System Wiring Diagram

am3zzn00004274

am3zzn00004275

am3zzn00005270

am3zzn00005207

Fail-safe

Speedometer

•  If the CAN signal cannot be received normally, the instrument cluster displays the 0 mark.

Tachometer

•  If the CAN signal cannot be received normally, the instrument cluster displays the 0 mark.

Fuel gauge

•  If the CAN signal cannot be received normally, the instrument cluster turns off one segment at regular time intervals since the segments calculated based on the signal last received are displayed.

Odometer/tripmeter

•  If the instrument cluster detects a malfunction in the internal CPU, the instrument cluster displays the “——“.

Warning lights

•  If the CAN signal cannot be received normally, the instrument cluster turns the warning light on.

Indicator lights

•  If the CAN signal cannot be received normally, the instrument cluster turns the indicator light off.

Alarm

•  If the CAN signal cannot be received normally, the instrument cluster stops the alarm.

Panel light

•  If the CAN signal cannot be received normally, the instrument cluster turns the panel light on.

Trip computer information system

•  If the instrument cluster detects a malfunction in the internal CPU, the instrument cluster displays the “——“.

Ambient temperature display

•  If the CAN signal cannot be received normally, the instrument cluster displays the “——“.
