CLUTCH HOUSING AND TRANSAXLE CASE COMPONENTS DISASSEMBLY [TYPE B]
id051500803713
1. Disassemble in the order indicated in the table.
|
1
|
Bearing race (primary shaft)
|
|
2
|
Oil seal (primary shaft)
|
|
3
|
Bearing race (secondary shaft)
|
|
4
|
Funnel
|
|
5
|
Guide plate component
|
|
6
|
Breather cover component
|
|
7
|
Breather
|
|
8
|
Hole cover
|
|
9
|
Oil seal (differential)
|
|
10
|
Bearing race (differential)
|
|
11
|
Reverse lever shaft
|
|
12
|
Reverse lever
|
|
13
|
Drain plug and washer
|
|
14
|
Bearing race (transaxle case)
|
|
15
|
Adjustment shim
|
|
16
|
Bearing race (differential)
|
|
17
|
Adjustment shim
|
|
18
|
Oil seal (differential)
|
|
19
|
Dowel pin
|
|
20
|
O-ring
|
|
21
|
Crank lever shaft
|
|
22
|
Crank component lever
|
|
23
|
Dust boot
|
|
24
|
Spring pin
|
|
25
|
Snap ring
|
|
26
|
Selector lever
|
|
27
|
Bracket
|
|
28
|
Shift lever
|
|
29
|
Dust boot
|
|
30
|
Key
|
|
31
|
Control rod end
|
|
32
|
Spring and washer
|
|
33
|
Shift lever shaft
|
|
34
|
Oil seal
|
|
35
|
Oil passage
|
Oil Seal (Primary Shaft) Disassembly Note

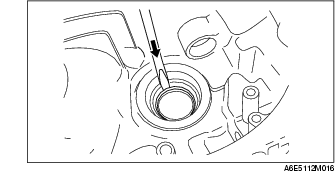

1. Remove the oil seal using a flathead screwdriver.
Bearing Race (Secondary Shaft) Disassembly Note

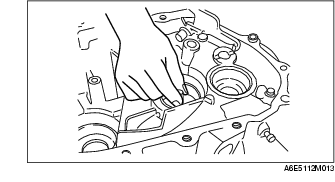

1. Remove the bearing race by lifting it and the funnel out together.
Oil Seal (Differential) Disassembly Note

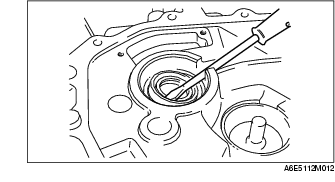

1. Remove the oil seal using a flathead screwdriver.
Bearing Race (Differential) Disassembly Note

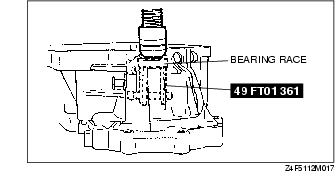

1. Remove the bearing outer race using the SST.
Reverse Lever Shaft Disassembly Note

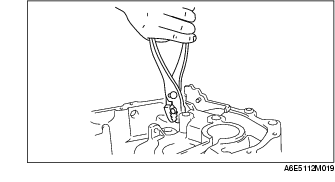

1. Remove the roll pin using pliers.

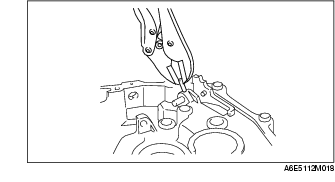

2. Protect the reverse lever shaft with a rag and use pliers to remove the shaft.
Bearing Race (Transaxle Case) Disassembly Note

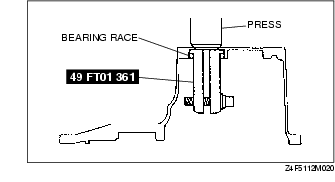

1. Remove the bearing race using the SST.
