DTC P0480 [ZY, Z6]

id0102c7807400

DTC P0480

Cooling fan control circuit problem

DETECTION CONDITION

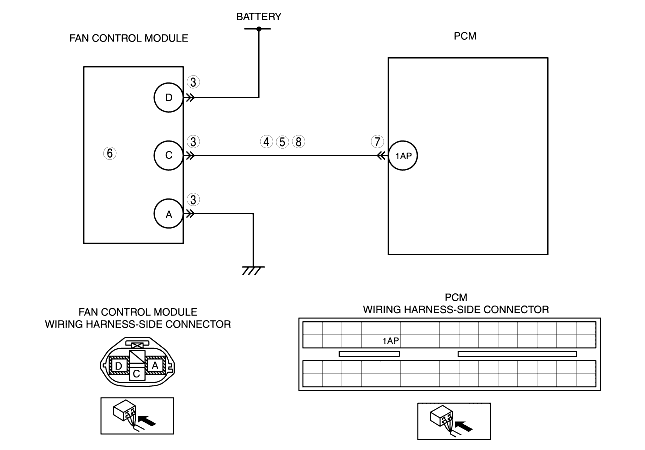

• The PCM monitors input voltage from the fan control module. If the voltage at PCM terminal 1AP remains low or high, the PCM determines that there is a cooling fan control circuit problem.
Diagnostic support note
• This is a continuous monitor (Other).
• The MIL does not illuminate.
• FREEZE FRAME DATA is not available.
• The DTC is stored in the PCM memory.

POSSIBLE CAUSE

• Fan control module malfunction
• Connector or terminal malfunction
• Open circuit in wiring harness between fan control module terminal C and PCM terminal 1AP
• Short to power supply in wiring harness between fan control module terminal C and PCM terminal 1AP
• Short to GND in wiring harness between fan control module terminal C and PCM terminal 1AP
• PCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION

1
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has FREEZE FRAME DATA been recorded?
Yes
Go to the next step.
No
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
2
VERIFY RELATED REPAIR INFORMATION AVAILABILITY
• Verify related service repair information availability.
• Is any related repair information available?
Yes
Perform repair or diagnosis according to the available repair information.
• If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3
INSPECT FAN CONTROL MODULE CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch off.
• Disconnect the fan control module connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 9.
No
Go to the next step.
4
INSPECT FAN CONTROL MODULE SIGNAL CIRCUIT FOR SHORT TO GND
• Turn the ignition switch off.
• Inspect for continuity between fan control module terminal C (wiring harness-side) and body GND.
• Is there continuity?
Yes
Repair or replace the wiring harness for a possible short to GND, then go to Step 9.
No
Go to the next step.
5
INSPECT FAN CONTROL MODULE SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY
• Turn the ignition switch to the ON position (Engine off).
• Measure the voltage between fan control module terminal C (wiring harness-side) and body GND.
• Is the voltage B+?
Yes
Repair or replace the wiring harness for a possible short to power supply, then go to Step 9.
No
Go to the next step.
6
INSPECT FAN CONTROL MODULE
• Inspect the fan control module.
• Is there any malfunction?
Yes
Replace the cooling fan component, then go to Step 9.
No
Go to the next step.
7
INSPECT PCM CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch off.
• Disconnect the PCM connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 9.
No
Go to the next step.
8
INSPECT FAN CONTROL MODULE SIGNAL CIRCUIT FOR OPEN CIRCUIT
• Turn the ignition switch off.
• Inspect for continuity between fan control module terminal C (wiring harness-side) and PCM terminal 1AP (wiring harness-side).
• Is there continuity?
Yes
Go to the next step.
No
Repair or replace the wiring harness for a possible open circuit, then go to the next step.
9
VERIFY TROUBLESHOOTING OF DTC P0480 COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the PCM memory using the WDS or equivalent.
• Start the engine.
• Turn the A/C switch on to operate the cooling fan motor.
• Is the same DTC present?
Yes
Replace the PCM, then go to the next step.
No
Go to the next step.
10
VERIFY AFTER REPAIR PROCEDURE
• Perform the "AFTER REPAIR PROCEDURE".
• Are any DTCs present?
Yes
Go to the applicable DTC inspection.
No
DTC troubleshooting completed.
