IDLE AIR CONTROL (IAC) VALVE REMOVAL/INSTALLATION [ZY, Z6]


id0113b0819900

1. Remove the under cover.

2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [ZY, Z6].)

3. Disconnect the negative battery cable.

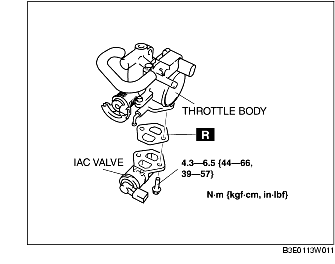

4. Remove the IAC valve.

5. Install in the reverse order of removal.
