VARIABLE TUMBLE SOLENOID VALVE INSPECTION [LF, L3]

id0113b3802900

1. Remove the variable tumble solenoid valve. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [LF, L3].)

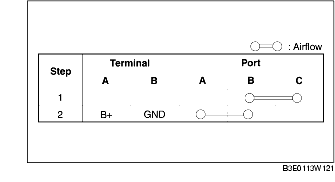

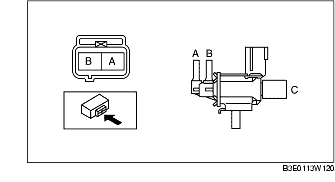

2. Inspect airflow between the ports under the following conditions.

• If not as specified, replace the variable tumble solenoid valve.

• If as specified, carry out the "Circuit Open/Short Inspection".

Circuit Open/Short Inspection

1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [LF, L3].)

2. Inspect the following wiring harness for open or short (continuity check).

• If there is no continuity, the circuit is open. Repair or replace the wiring harness.

- Variable tumble solenoid valve terminal B and PCM terminal 2AI

- Variable tumble solenoid valve terminal A and main relay terminal A

• If there is continuity, the circuit is shorted. Repair or replace the wiring harness.

- Variable tumble solenoid valve terminal A and body GND

- Variable tumble solenoid valve terminal B and power supply
