PCM REMOVAL/INSTALLATION [LF, L3]

id0140a6802400

1. When replacing the PCM, perform the following:

• PCM configuration (See PCM CONFIGURATION [LF, L3].)

2. Remove the battery cover, battery duct, battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [LF, L3].)

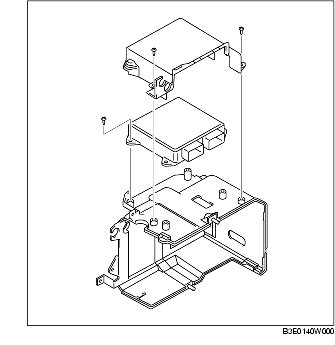

3. Remove the PCM from the battery tray.

4. When replacing the PCM on the vehicles, perform the following:

• PCM parameter reset (See IMMOBILIZER SYSTEM COMPONENT REPLACEMENT/KEY ADDITION AND CLEARING.)

5. Install in the reverse order of removal.
