EGR VALVE REMOVAL/INSTALLATION [ZY, Z6]

id0116008010a0

1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [ZY, Z6].)

2. Disconnect the negative battery cable.

3. Disconnect the EGR valve connector.

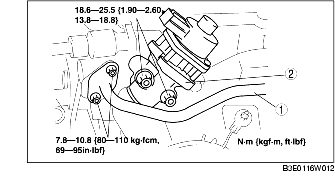

4. Remove in the order indicated in the table.

.

1
EGR pipe (Exhaust manifold side)
2
EGR valve

5. Replace the EGR valve gascket.

6. Install in the reverse order of removal.
