PURGE SOLENOID VALVE REMOVAL/INSTALLATION [ZY, Z6]


id0116008043a0

1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [ZY, Z6].)

2. Disconnect the negative battery cable.

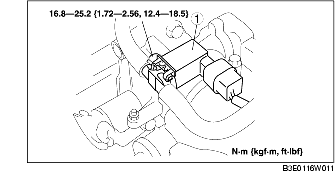

3. Remove in the order indicated in the table.

.

1
Purge solenoid valve

4. Install in the reverse order of removal.
