WHEEL HUB COMPONENT REMOVAL/INSTALLATION

id031200800400

Caution

• Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before performing the following procedures, disconnect the ABS wheel-speed sensor connector (body side) and fix the wiring harness to an appropriate place where it will not be pulled by mistake while servicing the vehicle.

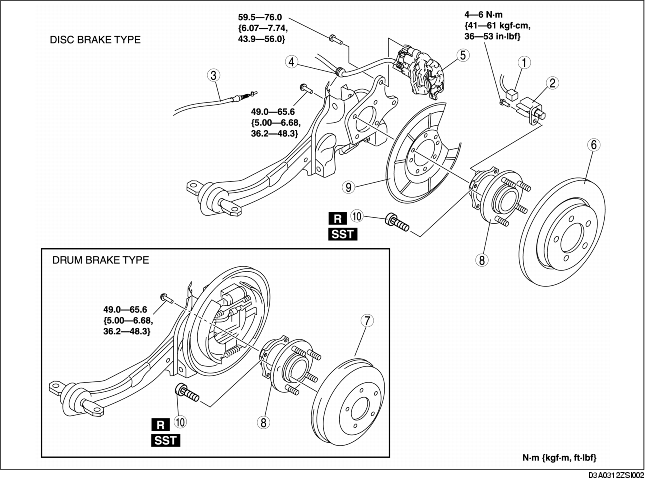

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.


1	ABS wheel-speed sensor connector
2	ABS wheel-speed sensor
3	Parking brake cable (disc brake type)
4	Brake hose (disc brake type)
5	Brake caliper component (disc brake type) (See Brake Caliper Component (Disc Brake Type) Removal Note.)
6	Disc plate (disc brake type)
7	Brake drum component (drum brake type)
8	Wheel hub component
9	Dust cover (disc brake type)
10	Wheel hub bolt (See Wheel Hub Bolt Removal Note.) (See Wheel Hub Bolt Installation Note.)

Brake Caliper Component (Disc Brake Type) Removal Note

1. Remove the brake caliper component from the trailing link and suspend it out of the way using a cable.

Wheel Hub Bolt Removal Note

Note

• The hub bolts do not need to be removed unless they are being replaced.

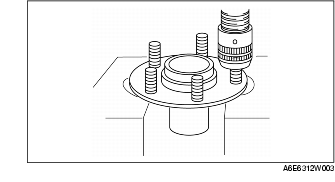

1. Remove the hub bolt using a press.

Wheel Hub Bolt Installation Note

1. Install the new hub bolt using a press.
