REAR BRAKE (DRUM) REMOVAL/INSTALLATION

id041100810100

1. Disconnect the rear ABS wheel-speed sensor connector.

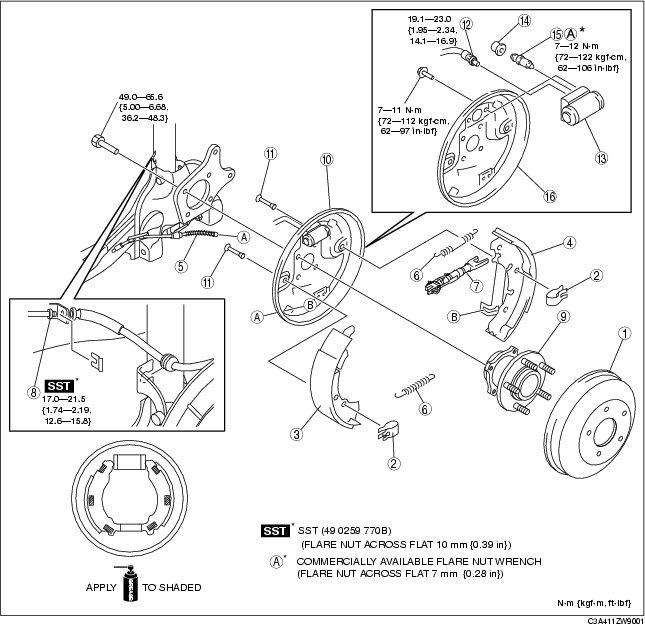

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

4. After installation, pump the brake pedal a few times and inspect the following:

- Parking brake lever stroke
- Brake drag
Caution
• The parts securing the parking brake cable may be damaged if the parking brake lever is pulled while the brake drum is removed. Operate the parking brake lever only when the brake drums are installed.
Note
• If there is excessive clearance between the brake drum and brake shoe, it is possible that the automatic adjuster function cannot be operated correctly. Verify that the clearance is within the specification when removing the brake drum or brake shoe, and adjust if necessary by turning the adjust screw with a flathead screwdriver. (See BRAKE SHOE CLEARANCE ADJUSTMENT.)

.

1
Brake drum
2
Hold spring
3
Leading shoe
4
Trailing shoe
5
End cable
6
Shoe return spring
7
Adjuster
8
Brake pipe
9
Wheel hub component
10
Backing plate, wheel cylinder, brake Hose
11
Hold pin
12
Brake hose
13
Wheel cylinder
14
Bleeder cap
15
Bleeder screw
16
Backing plate

Wheel Cylinder Installation Note

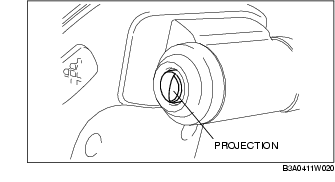

1. Install the wheel cylinder to the backing plate with the part of the piston that contacts the brake shoe in the direction shown in the figure (projection facing outward).

Backing Plate, Wheel Cylinder, Brake Hose, and Wheel Hub Component Installation Note

1. Verify that the hold pin is installed to the backing plate.

2. Install the backing plate, wheel cylinder, brake hose, and wheel hub component to the trailing link.

Adjuster Installation Note

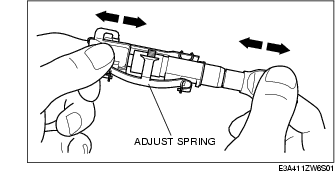

1. Before installing the adjuster, verify that the adjusting function operates properly by pressing the ends of the adjuster inward a few times.

• If there is any malfunction, replace the adjuster.
Note
• Do not use excessive force when inspecting the adjuster since the adjust spring can easily be deformed.

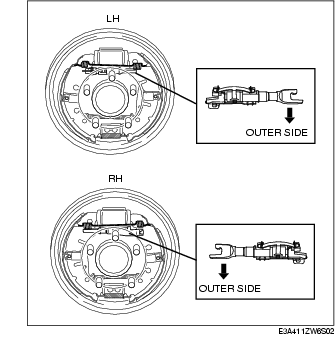

2. Install the adjuster in the direction shown in the figure.

• Install so that the longer tab of the adjuster end on the trailing shoe side is facing outward.
• Install with the adjust spring on the inner side.

Hold Spring (Trailing Shoe Side) Installation Note

1. Insert a flathead screwdriver into the trailing link hole from the vehicle side and press the hold pin.

2. Install the hold spring (trailing shoe side) to the hold pin.
