1. Remove the under cover (rear).

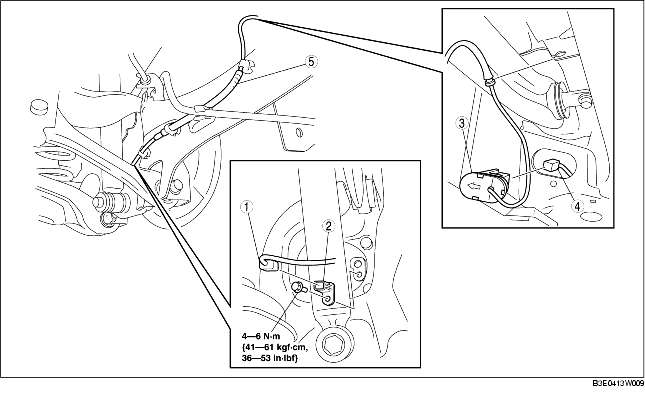

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
.
|
1
|
Connector
|
|
2
|
Rear ABS wheel-speed sensor
|
|
3
|
ABS hole cover
(See ABS Hole Cover Removal Note.)
|
|
4
|
Connector
|
|
5
|
Rear ABS wheel-speed sensor wiring harness
|
1. Disconnect the rear auto leveling sensor connector. (Vehicles with auto leveling sensor)
2. Press the tab of the ABS hole cover to separate the ABS hole cover from the body.
3. Remove the ABS hole cover from the body.

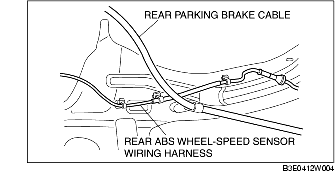

1. Pass the rear ABS wheel-speed sensor wiring harness outside the rear parking brake cable as shown in the figure.
2. Install the rear ABS wheel-speed sensor wiring harness.
1. Install the ABS hole cover into the body so that the arrow on it is facing toward the outer side of the vehicle.
