STEERING ANGLE SENSOR INSPECTION

1. Remove the column cover.

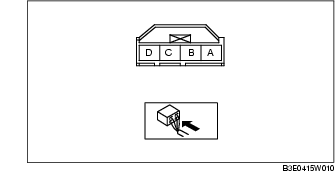

2. Turn the ignition switch to the ON position and measure the voltage between steering angle sensor terminal A and ground.

• If there is any malfunction, inspect the wiring harness between steering angle sensor terminal A and DSC HU/CM terminal AB. Repair or replace if necessary.

B+

3. Measure the voltage between steering angle sensor terminal D and ground.

• If there is any malfunction, inspect the wiring harness between steering angle sensor terminal D and DSC HU/CM terminal AH. Repair or replace if necessary.

0 V

4. Turn the ignition switch off.

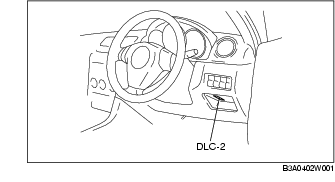

5. Connect the WDS or equivalent to the DLC-2.

6. Select the "SWA_POS" PID.

7. Verify the SWA_POS changes when the steering wheel is turned to the left and right.

• If there is any malfunction, replace the steering angle sensor. (See CLOCK SPRING REMOVAL/INSTALLATION.)

When the steering wheel is turned to the left:

SWA_POS changes positively.

When the steering wheel is turned to the right:

SWA_POS changes negatively.
