1. Remove the vehicle speed sensor.
(See VEHICLE SPEED SENSOR REMOVAL/INSTALLATION (WITHOUT ABS) [G35M-R].)

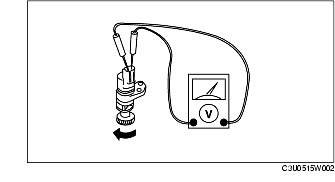

2. Measure the voltage between the vehicle speed sensor terminals while the gear is turning.
|
Meter needle
|
Action
|
|---|---|
|
Moves slightly under 5 V (AC)
|
Inspect wiring harness between instrument cluster and vehicle speedometer sensor.
|
|
Does not move
|
Replace vehicle speed sensor.
|
3. Install the vehicle speed sensor.
(See VEHICLE SPEED SENSOR REMOVAL/INSTALLATION (WITHOUT ABS) [G35M-R].)
