OIL PRESSURE SWITCH REMOVAL/INSTALLATION [L3]

Warning

• A hot transaxle and ATF can cause severe burns. Turn off the engine and wait until they are cool before replacing the ATF.

1. Remove the battery duct and battery cover. (See BATTERY REMOVAL/INSTALLATION [LF, L3].)

2. Disconnect the negative battery cable.

3. Remove the under cover.

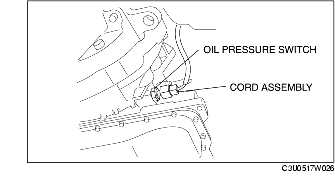

4. Disconnect the cord assembly connector.

5. Remove the oil pressure switch.

6. Install the oil pressure switch.

Tightening torque

17.1-22.1 N·m

{1.8-2.2 kgf·m, 12.7-16.2 ft·lbf}

7. Connect the oil pressure switch connector.

8. Install the under cover.

9. Connect the negative battery cable.

10. Install the battery duct and battery cover. (See BATTERY REMOVAL/INSTALLATION [LF, L3].)
