Diagnostic procedure
|
STEP
|
INSPECTION
|
ACTION
|
|
|---|---|---|---|
|
1
|
INSPECT BATTERY VOLTAGE
• Is the battery terminal voltage normal?
|
Yes
|
Make sure that battery terminal connection is okay.
Go to the next step.
|
|
No
|
Charge or replace the battery, then go to Step 6.
|
||
|
2
|
INSPECT BATTERY GRAVITY
• Is the battery specific gravity as specified?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the battery, then go to Step 6.
|
||
|
3
|
INSPECT CHARGING SYSTEM
• Are the generator and drive belt tension normal?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the generator and/or drive belt if necessary.
Go to step 6.
|
||
|
4
|

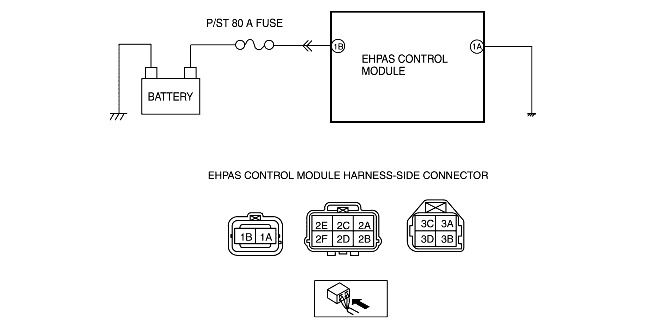

INSPECT EHPAS CM POWER SUPPLY CIRCUIT FOR OPEN OR SHORT CIRCUIT
• Start the engine.
• Measure the voltage between following EHPAS control module terminal (wiring harness-side) and ground.
• Is the voltage 10 V or more?
|
Yes
|
Go to the next Step.
|
|
No
|
Repair or replace the wiring harness for open circuit between the EHPAS control module and ground, then go to Step 6.
|
||
|
5
|
INSPECT EHPAS CONTROL MODULE GROUND CIRCUIT FOR POOR GROUND OR OPEN CIRCUIT
• Turn the ignition switch off.
• Measure the resistance between the following EHPAS control module terminal (wiring harness-side) and ground.
• Is the resistance within 0-1 ohm?
|
Yes
|
Go to the next step.
|
|
No
|
If there is no continuity:
• Repair or replace the wiring harness for open circuit between the EHPAS control module and ground, then go to the next step.
If the resistance is not within 0-1 ohm:
• Repair or replace the wiring harness for poor ground, then go to the next step.
|
||
|
6
|
VERIFY THAT THE SAME DTC IS NOT PRESENT
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the memory.
(See Clearing DTCs Procedure.)
• Is the same DTC present?
|
Yes
|
Replace the electric power steering oil pump, then go to the next step.
|
|
No
|
Go to the next step.
|
||
|
7
|
VERIFY THAT NO OTHER DTCS ARE PRESENT
• Are any other DTCs output?
|
Yes
|
Go to the applicable DTC inspection.
(See DTC Table.)
|
|
No
|
DTC troubleshooting completed.
|
||
