STEP
|
INSPECTION
|
ACTION
|
|
|---|---|---|---|
|
1
|
• Inspect the airflow mode actuator. (See AIRFLOW MODE ACTUATOR INSPECTION.)
• Is it normal?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the airflow mode actuator. (See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION.)
|
||
|
2
|

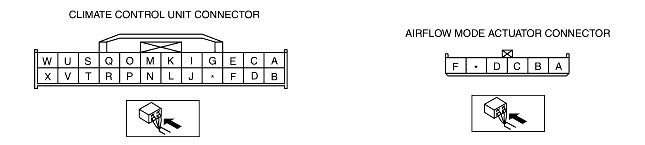

• Disconnect the climate control unit connector and the airflow mode actuator connector.
• Is there an open circuit in the wiring harness between the following terminals of the climate control unit and the airflow mode actuator?
|
Yes
|
Repair the wiring harness.
|
|
No
|
Go to the next step.
|
||
|
3
|
• Is there a short circuit to ground in the wiring harness between climate control unit terminal L and airflow mode actuator terminal C?
|
Yes
|
Repair the wiring harness.
|
|
No
|
The system is normal at present. (Clear the past malfunction from the memory.)
|
||
|
|
|||
