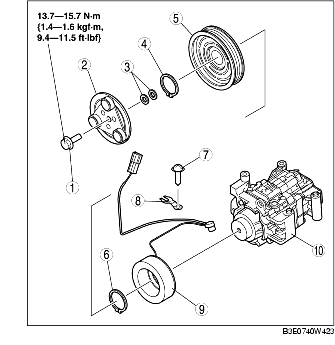

1. Disassemble in the order indicated in the table.
|
1
|
Bolt
|
|
2
|
Pressure plate
|
|
3
|
Shim
|
|
4
|
Snap ring
(See Snap Ring Installation Note.)
|
|
5
|
A/C compressor pulley
|
|
6
|
Snap ring
(See Snap Ring Installation Note.)
|
|
7
|
Screw
(See Screw Installation Note.)
|
|
8
|
Clamp
(See Clamp Installation Note.)
|
|
9
|
Stator and thermal protector
|
|
10
|
A/C compressor body
|
2. Assemble in the reverse order of disassembly.
3. Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT.)
1. When removing or installing the bolt, hold the pressure plate in place as shown in the figure.
2. When installing a new A/C compressor body, replace the recommended bolt.
