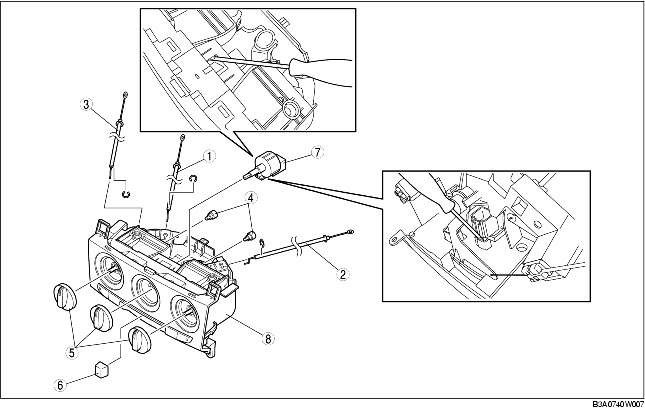

1. Disassemble in the order indicated in the table.
.
|
1
|
Airflow mode wire
(See Wire Disassembly Note.)
(See Wire Assembly Note.)
|
|
2
|
Air mix wire
(See Wire Disassembly Note.)
(See Wire Assembly Note.)
|
|
3
|
Air intake wire
(See Wire Disassembly Note.)
(See Wire Assembly Note.)
|
|
4
|
Illumination bulb
|
|
5
|
Dial
|
|
6
|
Knob
|
|
7
|
Fan switch
|
|
8
|
Body
|
2. Assemble in the reverse order of disassembly.

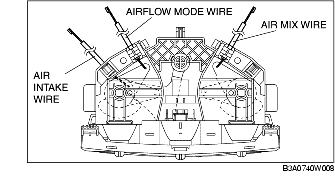

1. Disassemble the wires as shown in the figure.

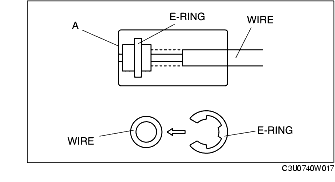

1. Assemble the wires at the positions shown in the figure.
2. Assemble E-ring with the wire pressed against surface A.
