CLOCK SPRING INSPECTION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]

1. Remove the clock spring. (See CLOCK SPRING REMOVAL/INSTALLATION.)

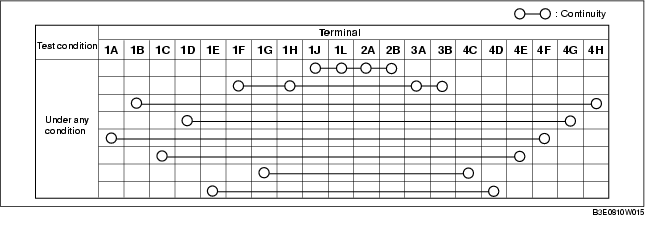

2. Verify that the continuity is as indicated in the table.

• If not as indicated in the table, replace the clock spring.

Note

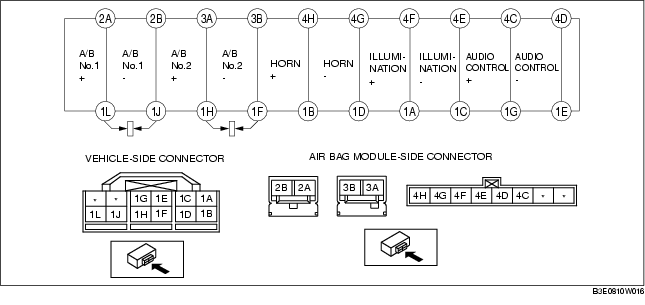

• When the vehicle-side connector for the clock spring is disconnected, terminals 1F, 1H, 1J and 1L are shorted to prevent unexpected operation (deployment) of the air bag module.
