Diagnostic procedure
|
STEP
|
INSPECTION
|
ACTION
|
|
|---|---|---|---|
|
1
|
INSPECT DTC FROM PCM
• Connect the WDS or equivalent to the DLC-2.
• Are any DTCs from the PCM displayed?
|
Yes
|
Perform DTC inspection.
(See DTC TABLE [LF, L3].)
(See DTC TABLE [ZY, Z6].)
Go to Step 5.
|
|
No
|
Go to the next step.
|
||
|
2
|
INSPECT PJB CONNECTOR
• Disconnect the PJB connector.
• Inspect the PJB connector terminals for poor connection (such as damaged/pulled-out pins, and corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the terminal, then go to Step 5.
|
|
No
|
Go to the next step.
|
||
|
3
|

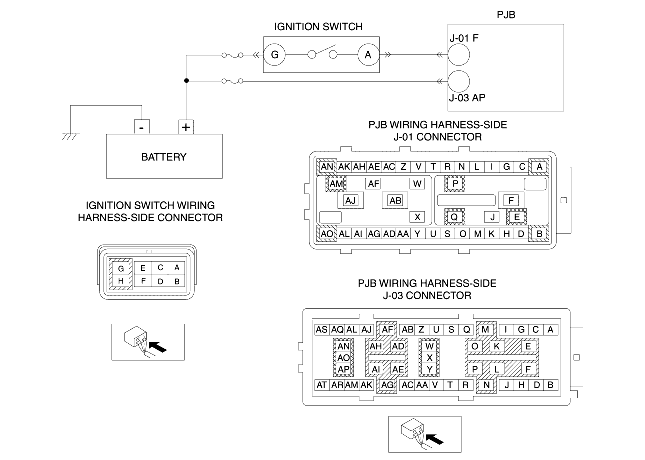

INSPECT PJB POWER SUPPLY CIRCUIT FOR OPEN CIRCUIT
• Disconnect the negative battery cable.
• Disconnect the positive battery cable.
• Inspect for continuity between following terminals:
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the wiring harness for a possible open circuit, then go to Step 5.
|
||
|
4
|
INSPECT PJB POWER SUPPLY CIRCUIT FOR SHORT TO GND
• Inspect for continuity between following terminals:
• Is there continuity?
|
Yes
|
Repair or replace the wiring harness for a possible short to GND, then go to the next step.
|
|
No
|
Go to the next step.
|
||
|
5
|
VERIFY TROUBLESHOOTING COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the PJB memory using the WDS or equivalent.
• Turn the ignition switch to LOCK position then ON position.
• Is the same DTC present?
|
Yes
|
Replace the PJB.
|
|
No
|
DTC troubleshooting completed.
|
||
