Diagnostic procedure
|
STEP
|
INSPECTION
|
ACTION
|
|
|---|---|---|---|
|
1
|
INSPECT REAR WINDOW DEFROSTER RELAY CONNECTOR
• Turn the ignition switch off.
• Disconnect the rear window defroster relay connector.
• Inspect the rear window defroster relay connector terminals for poor connection (such as damaged/pulled-out pins, and corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the terminal, then go to Step 7.
|
|
No
|
Go to the next step.
|
||
|
2
|
INSPECT PJB CONNECTOR
• Disconnect the PJB connector.
• Inspect the PJB connector terminals for poor connection (such as damaged/pulled-out pins, and corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the terminal, then go to Step 7.
|
|
No
|
Go to the next step.
|
||
|
3
|
INSPECT REAR WINDOW DEFROSTER RELAY CONTROL CIRCUIT FOR OPEN CIRCUIT

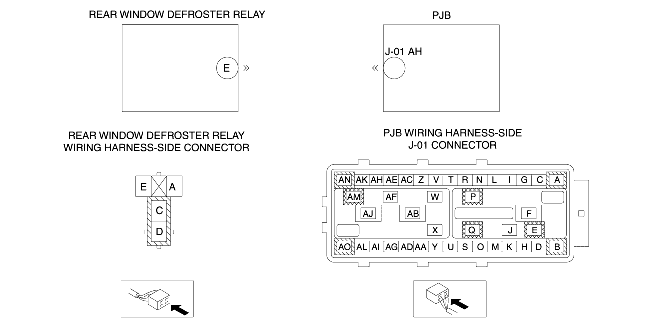

• Inspect for continuity between PJB terminal J-01 AH (wiring harness-side) and rear window defroster relay terminal E (wiring harness-side).
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the wiring harness for a possible short to GND, then go to Step 7.
|
||
|
4
|
INSPECT REAR WINDOW DEFROSTER RELAY CONTROL CIRCUIT FOR SHORT TO GND
• Inspect for continuity between PJB terminal J-01 AH (wiring harness-side) and body GND.
• Is there continuity?
|
Yes
|
Repair or replace the wiring harness for a possible short to GND, then go to Step 7.
|
|
No
|
Go to the next step.
|
||
|
5
|
INSPECT REAR WINDOW DEFROSTER RELAY CONTROL CIRCUIT FOR SHORT TO POWER SUPPLY
• Turn the ignition switch to the ON position (Engine off).
• Measure the voltage between PJB terminal J-01 AH (wiring harness-side) and body GND.
• Is the voltage B+?
|
Yes
|
Repair or replace the wiring harness for a possible short to power supply, then go to Step 7.
|
|
No
|
Go to the next step.
|
||
|
6
|
INSPECT REAR WINDOW DEFROSTER RELAY
• Inspect the rear window defroster relay.
(See RELAY INSPECTION.)
• Is there any malfunction?
|
Yes
|
Replace the rear window defroster relay, then go to the next step.
|
|
No
|
Go to the next step.
|
||
|
7
|
VERIFY TROUBLESHOOTING COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the PJB memory using the WDS or equivalent.
• Perform the self-test.
(See PJB SELF-TEST.)
• Is the same DTC present?
|
Yes
|
Replace the PJB.
|
|
No
|
DTC troubleshooting completed.
|
||
