1. Disconnect the negative battery cable.

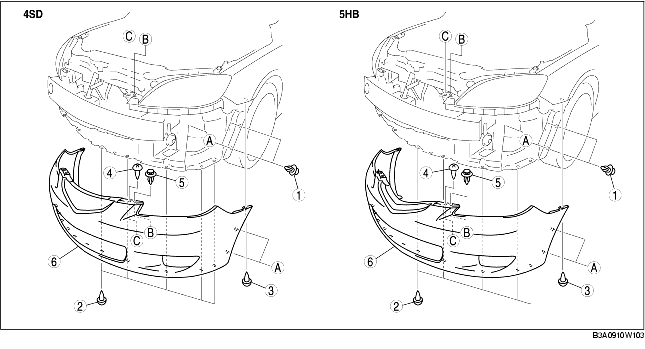

2. Remove in the order indicated in the table.
.
|
1
|
Fastener A
|
|
2
|
Screw A
|
|
3
|
Screw B
|
|
4
|
Screw C
|
|
5
|
Fastener B
|
|
6
|
Front bumper
(See Front Bumper Removal Note.)
|
3. Disconnect the front fog light connectors for vehicles with the front fog lights.
4. Install in the reverse order of removal.
5. Adjust the front fog light aiming for vehicles with the front fog lights. (See FRONT FOG LIGHT AIMING.)

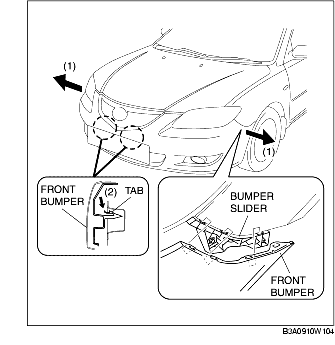

1. Pull the front bumper ends (wheel arch) outward to detach from the bumper slider.
2. Push the tabs in the direction of the arrow.
3. Remove the front bumper from the body.
1. Spread the front bumper ends apart.
2. Attach the front bumper to the body.
3. Press the front bumper connecting area into the body to engage with the bumper slider.
