1. Disconnect the negative battery cable.
2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)
3. Remove the front combination lights. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)
4. Remove the front bumper reinforcement. (See FRONT BUMPER REINFORCEMENT REMOVAL/INSTALLATION.)
5. Remove the bonnet latch. (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

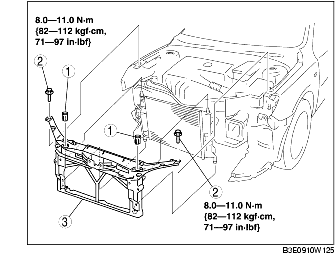

6. Remove in the order indicated in the table.
7. Install in the reverse order of removal.
