FRONT MANUAL WINDOW REGULATOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:

(1) Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(2) Regulator handle (See REGULATOR HANDLE REMOVAL.)

(3) Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(4) Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

(5) Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

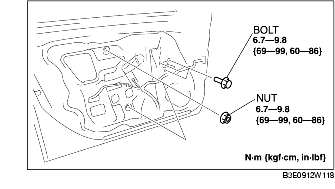

3. Remove the nuts and the bolts.

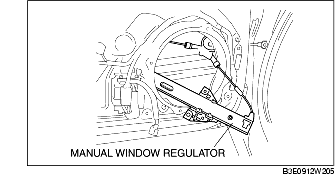

4. Remove the front manual window regulator through the speaker installation hole.

5. Install in the reverse order of removal.
