1. Fully roll up the front door glass.
2. Disconnect the negative battery cable. (vehicles with power window system or power outer mirror)
3. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION.)
4. Remove the regulator handle. (vehicles with manual window system) (See REGULATOR HANDLE REMOVAL.) (See REGULATOR HANDLE INSTALLATION.)
5. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

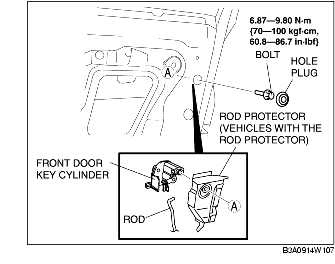

6. Remove the hole plug, then remove the bolt.
7. Remove the rod from the front outer handle.
8. Remove the rod protector. (vehicles with the rod protector)
9. Remove the rod from the front door key cylinder.
10. Remove the front door key cylinder.
11. Install in the reverse order of removal.
