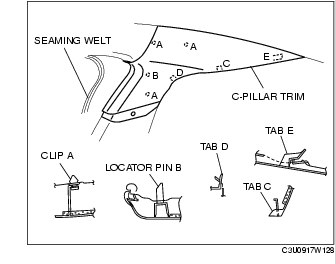

1. Remove the rear seat. (See REAR SEAT REMOVAL/INSTALLATION.)
2. Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
3. Remove the tire house trim. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
4. Partially peel back the seaming welt.
5. Detach clips A and locator pin B, using a fastener remover.
6. Detach the tab C, D and E from the body and remove the C-pillar trim.
7. Install in the reverse order of removal.

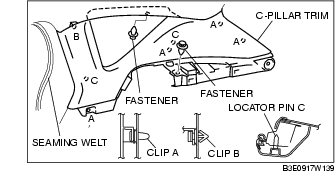

1. Remove the following parts:
2. Partially peel back the seaming welt.
3. Remove the fasteners.
4. Detach clips A, B and locator pins C, using a fastener remover.
5. Remove the C-pillar trim.
6. Install in the reverse order of removal.
