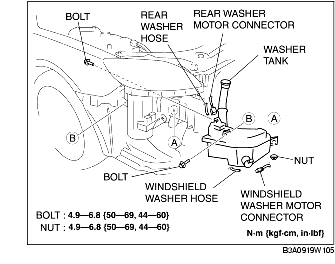

WASHER TANK REMOVAL/INSTALLATION


id091900476100

1. Disconnect the negative battery cable.

2. Remove the front bumper. (SeeFRONT BUMPER REMOVAL/INSTALLATION.)

3. Disconnect the windshield washer motor connector and windshield washer hose.

4. Disconnect the rear washer motor connector and rear washer hose. (5HB)

5. Remove the bolts and nut, then remove the washer tank.

6. Install in the reverse order of removal.
