WINDSHIELD WIPER LINK DISASSEMBLY/ASSEMBLY [L.H.D.]

id0919008036a1

Disassembly

Note

• Do not replace link parts individually. If it is necessary to replace any part, replace the windshield wiper link as a single unit.

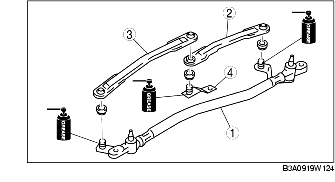

1. Assemble in the order indicated in the table.


1	Main link (See Ball Joint Assembly Note.)
2	Wiper link No. 2 (See Ball Joint Assembly Note.)
3	Wiper link No. 1 (See Ball Joint Assembly Note.) (See Wiper Link No. 1 Assembly Note.)
4	Motor crank (See Ball Joint Assembly Note.)

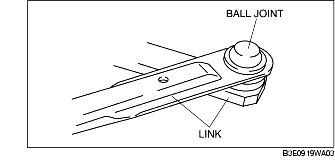

1. Use a clean rag to protect the link and squeeze using pliers.

1. Assemble the wiper link No. 1 positioned as shown in the figure.
