CYLINDER HEAD GASKET REPLACEMENT [MZR 1.8, MZR 2.0, MZR 2.5]

id011005800700

Warning
•  Fuel vapor is hazardous. It can very easily ignite, causing serious injury and damage. Always keep sparks and flames away from fuel.
•  Fuel line spills and leakage are dangerous. Fuel can ignite and cause serious injuries or death and damage. Fuel can also irritate skin and eyes. To prevent this, always complete the “Fuel Line Safety Procedure”. (See BEFORE SERVICE PRECAUTION [MZR 1.8, MZR 2.0, MZR 2.5].)

1.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [MZR 1.8, MZR 2.0, MZR 2.5].)

2.  Remove the generator, but do not remove it from the vehicle. Fix the generator using a rope to prevent it from falling. (See GENERATOR REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)

3.  Remove the exhaust manifold. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)

4.  Remove the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)

5.  Disconnect the water hose. (See THERMOSTAT REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)

6.  Disconnect the upper radiator hose. (See RADIATOR REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)

7.  Disconnect the heater hose. (See A/C UNIT REMOVAL/INSTALLATION.)

8.  Remove the timing chain. (See TIMING CHAIN REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)

9.  Disconnect the wiring harness.

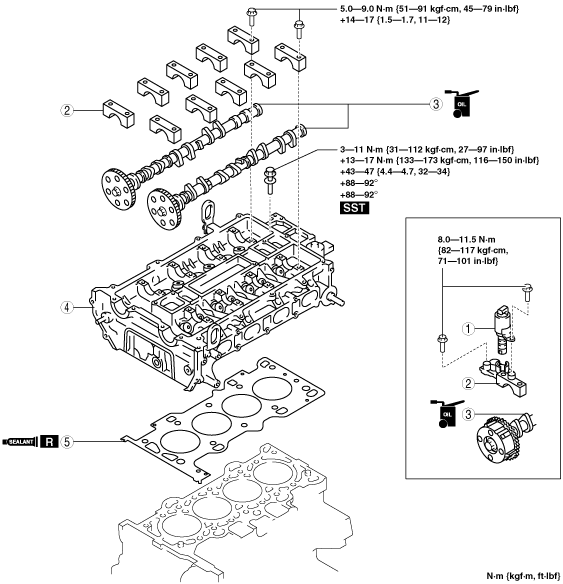

10.  Remove in the order indicated in the table.

11.  Install in the reverse order of removal.

12.  Bleed the air from the cooling system. (See ENGINE COOLANT REPLACEMENT [MZR 1.8, MZR 2.0, MZR 2.5].)

13.  Inspect the compression. (See COMPRESSION INSPECTION [MZR 1.8, MZR 2.0, MZR 2.5].)

am6zzw00005117

1
OCV (With variable valve timing mechanism.)
2
Camshaft cap
3
Camshaft
(See Camshaft Removal Note.)
(See Camshaft Installation Note.)
4
Cylinder head
(See Cylinder Head Removal Note.)
(See Cylinder Head Installation Note.)
5
Cylinder head gasket
(See Cylinder Head Gasket Installation Note.)


Camshaft Removal Note

Note
•  The cylinder head and the camshaft caps are numbered to be reassembled in their original position correctly. When removed, keep the caps with the cylinder head they were removed from. Do not mix the caps.

1.  Loosen the camshaft cap bolts in 2—3 steps in the order shown in the figure.

am6zzw00005118


Cylinder Head Removal Note

1.  Loosen the cylinder head bolts in 2—3 steps in the order shown in the figure.

am6zzw00005119


Cylinder Head Gasket Installation Note

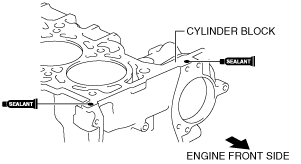

1.  Apply silicone sealant to the areas shown in the figure.

Caution
•  Install the cylinder head gasket and cylinder head before the applied silicone sealant starts to harden.
acxaaw00001646
Thickness
4—7 mm {0.16—0.27 in}

2.  Install the cylinder block with a new cylinder head gasket.

3.  Apply silicone sealant to the areas shown in the figure.

acxaaw00001647

Thickness
4—7 mm {0.16—0.27 in}

4.  Install the cylinder head referring to the Cylinder Head Installation Note.


Cylinder Head Installation Note

1.  Measure the length of each cylinder head bolt.

•  Replace any that exceeds maximum length.
am6zzw00007650
Cylinder head bolt stem length (L)
Standard: 145.2—145.8 mm {5.717—5.740 in}
Maximum: 146.5 mm {5.767 in}

2.  Tighten the cylinder head bolts in the order shown in the following 5 steps using the SST (49 D032 316).

am6zzw00005120

Tightening procedure
Step 1: 3—11 N·m {31—112 kgf·cm, 27—97 in·lbf}
Step 2: 13—17 N·m {133—173 kgf·cm, 116—150 in·lbf}
Step 3: 43—47 N·m {4.4—4.7 kgf·m, 32—34 ft·lbf}
Step 4: 88—92°
Step 5: 88—92°


Camshaft Installation Note

1.  Apply the gear oil (SAE No.90 or equivalent) to each journal of the cylinder head as shown in the figure.

aatjjw00010413

2.  Set the cam position of No.1 cylinder at the top dead center (TDC) and install the camshaft.

3.  Apply the gear oil (SAE No.90 or equivalent) to each journal of the camshaft as shown in the figure.

aatjjw00010414

4.  Temporarily tighten the camshaft cap bolts evenly in 2—3 steps.

5.  Tighten the camshaft cap bolts in the order shown in the following two steps.

am6zzw00005121

Tightening procedure
Step 1: 5.0—9.0 N·m {51—91 kgf·cm, 45—79 in·lbf}
Step 2: 14—17 N·m {1.5—1.7 kgf·m, 11—12 ft·lbf}
