TIMING CHAIN REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5]

id011005801000

1.  Disconnect the negative battery cable.

2.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)

3.  Disconnect the wiring harness.

4.  Remove the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)

5.  Remove the ventilation hose. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)

6.  Set the cooler pipe and the cooler hose (LO) out of the way. (See REFRIGERANT LINE REMOVAL/INSTALLATION.)

7.  Remove the front wheel and tire (RH). (See GENERAL PROCEDURES (SUSPENSION).)

8.  Set the front mudguard (RH) out of the way. (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

9.  Remove the splash shield (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION.)

10.  Remove the aerodynamic under cover No.2. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.)

11.  Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)

12.  Remove the crankshaft position (CKP) sensor. (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)

13.  Disconnect the drive shaft (RH) from joint shaft, set the drive shaft (RH) out of the way. (ATX) (See DRIVE SHAFT REMOVAL/INSTALLATION.)

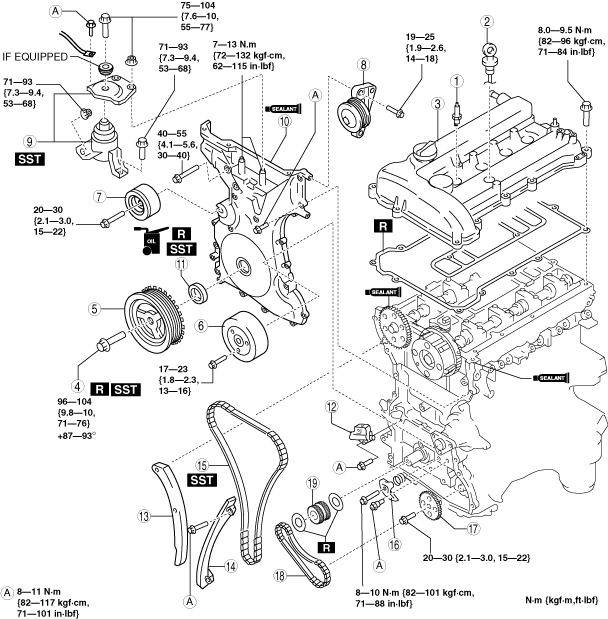

14.  Remove in the order indicated in the table.

15.  Install in the reverse order of removal.

16.  Start the engine. And inspect and adjust the following:

•  Leakage of engine oil.
•  Runout and contact of pulley and belt.
•  Verify the ignition timing, idle speed and idle mixture. (See ENGINE TUNE-UP [MZR 1.8, MZR 2.0, MZR 2.5].)

am6zzw00017937

1
Spark plug
(See SPARK PLUG REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)
2
Dipstick
3
Cylinder head cover
(See Cylinder Head Cover Removal Note.)
(See Cylinder Head Cover Installation Note.)
4
Crankshaft pulley lock bolt
(See Crankshaft Pulley Lock Bolt Removal Note.)
(See Crankshaft Pulley Lock Bolt Installation Note.)
5
Crankshaft pulley
6
Water pump pulley
7
Drive belt idler pulley
8
Drive belt idler pulley
9
No.3 engine mount
(See No.3 Engine Mount Removal Note.)
(See No.3 Engine Mount Installation Note.)
10
Engine front cover
(See Engine Front Cover Installation Note.)
11
Front oil seal
(See FRONT OIL SEAL REPLACEMENT [MZR 1.8, MZR 2.0, MZR 2.5].)
12
Chain tensioner
(See Chain Tensioner Removal Note.)
13
Tensioner arm
14
Chain guide
15
Timing chain
(See Timing Chain Installation Note.)
16
Oil pump chain tensioner
17
Oil pump sprocket
(See Oil Pump Sprocket Removal/Installation Note.)
18
Oil pump chain
19
Crankshaft sprocket


Cylinder Head Cover Removal Note

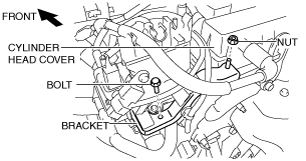

1.  Remove the bracket with the hose still connected and set it out of the way.

am6zzw00005126

2.  Loosen the cylinder head cover bolts in the order shown in the figure.

am6zzw00005127


Crankshaft Pulley Lock Bolt Removal Note

1.  Rotate the crankshaft in the direction of the engine rotation and remove the cylinder block lower blind plug when the No. 1 cylinder is at the point prior to top dead center (TDC) of compression, then install the SST.

am8rrw00001251

2.  Rotate the crankshaft in the direction of the engine rotation so that the No.1 piston is at TDC of the compression stroke. (Until the counterweight contacts SST and stops.)

3.  Hold the crankshaft pulley by using the SSTs.

am6zzw00000923


No.3 Engine Mount Removal Note

Note
•  If the oil pan is removed, note that the method for securing the engine differs.

Oil pan is removed

1.  Remove the air cleaner. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)

2.  Install the SST using the following procedure.

Caution
•  Refer to the SST instruction manual for the basic handing procedure.
am6zzw00000924
(1)  As shown in the figure, set the rear shafts of the SST to the left and right shock absorber bolts.
am6zzw00000925
(2)  Install front foot No.2 to the left/right front shaft of the SST, then align the groove of the front shaft of the SST with the folded up part of the vehicle as shown in the figure.
am6zzw00000926
(3)  Adjust the positions of the SST side bars so that they are the same height (left and right) and horizontal.
(4)  Make sure each joint is securely tightened.

3.  Support the engine using the SST.

am6zzw00000927


Oil pan is not removed

1.  Support the engine (oil pan) using a commercially available engine lifter.

am5ezw00006886


Chain Tensioner Removal Note

1.  Using a thin screwdriver, hold the chain tensioner ratchet lock mechanism away from the ratchet stem.

2.  Slowly compress the tensioner piston.

3.  Hold the tensioner piston using a 1.5 mm {0.059 in} wire or paper clip.

am6zzw00005128


Oil Pump Sprocket Removal/Installation Note

1.  Temporarily install the crankshaft pulley and crankshaft pulley lock bolt to the crankshaft, and lock the oil pump against rotation as shown in figure.

am6zzw00005129

2.  Remove/install the oil pump sprocket, and then remove the crankshaft pulley and crankshaft pulley lock bolt.

Tightening torque
20—30 N·m {2.1—3.0 kgf·m, 15—22 ft·lbf}


Timing Chain Installation Note

1.  Install the SST to the camshaft as shown.

am6zzw00002676

2.  Install the timing chain.

3.  Remove the retaining wire or paper clip from the auto tensioner to apply tension to the timing chain.


Engine Front Cover Installation Note

Caution
•  Install the engine front cover before the applied silicone sealant starts to harden.
•  Completely remove any oil, dirt, sealant, or other foreign matter adhering to the engine front cover and engine front cover installation surface. If any oil, dirt, sealant, or other foreign matter is not removed from the space between the engine front cover and engine front cover installation surface, it may cause a sealing malfunction.

1.  Apply silicone sealant to the engine front cover as shown.

MZR 1.8, MZR 2.0

am6zzw00005130
Thickness
A: 2.2—3.2 mm {0.087—0.12 in}
B: 1.5—2.5 mm {0.06—0.098 in}

MZR 2.5

am6zzw00004489
Thickness
A: 2.2—3.2 mm {0.087—0.12 in}
B: 1.5—2.5 mm {0.06—0.098 in}
C: 2.2—4.3 mm {0.09—0.16 in}
D: 3.3—4.3 mm {0.13—0.16 in}

2.  Install the engine front cover bolts in the order as shown.

am6zzw00005131

No.

Tightening torque
1―18
8—11 N·m {82—117 kgf·cm, 71—101 in·lbf}
19―22
40—55 N·m {4.1—5.6 kgf·m, 30—40 ft·lbf}


No.3 Engine Mount Installation Note

Note
•  If the No.3 engine mount bracket and the engine are removed, retighten the No.3 engine mount stud bolts.

1.  Tighten the No.3 engine mount stud bolts.

am6zzw00012562

Tightening torque
7—13 N·m {72—132 kgf·cm, 62—115 in·lbf}

2.  Temporarily tighten the No.3 engine mount installation bolts and nuts.

3.  Tighten the No.3 engine mount bracket is attached and bolts, nuts in the order as shown.

am6zzw00005436

No.

Tightening torque
1―3
71—93 N·m {7.3—9.4 kgf·m, 53—68 ft·lbf}
4, 5
75—104 N·m {7.6—10 kgf·m, 55—77 ft·lbf}


Crankshaft Pulley Lock Bolt Installation Note

1.  Install the SST to the camshaft as shown.

am6zzw00002676

2.  Verify that No.1 cylinder is at TDC of the compression stroke. (Position counterweight contacts SST.)

3.  To position the crankshaft pulley, temporarily tighten it and, using a suitable bolt (M6 X 1.0), fix the crankshaft pulley to the engine front cover.

am6zzw00000829

4.  Hold the crankshaft pulley using the SSTs.

am6zzw00000923

5.  Tighten the crankshaft pulley lock bolt in the order shown in the following two steps using the SST (49 D032 316).

Tightening torque
Step 1: 96—104 N·m {9.8—10 kgf·m, 71—76 ft·lbf}
Step 2: 87—93°

6.  Remove the bolt (M6 X 1.0) installed to the crankshaft pulley.

7.  Remove the SST from the camshaft.

8.  Remove the SST from the cylinder block lower blind plug hole.

9.  Rotate the crankshaft clockwise two turns and inspect the valve timing.

•  If not aligned, loosen the crankshaft pulley lock bolt and repeat from Step 1.

10.  Install the cylinder block lower blind plug.

am6zzw00000929

Tightening torque
18—22 N·m {1.9—2.2 kgf·m, 14—16 ft·lbf}


Cylinder Head Cover Installation Note

1.  Apply silicone sealant to the mating faces as shown.

Caution
•  Install the cylinder head cover before the applied silicone sealant starts to harden.
am8rrw00000667
Thickness
4.0—6.0 mm {0.16—0.23 in}

2.  Install the cylinder head cover with a new gasket.

3.  Tighten the bolts in the order shown.

am6zzw00005133

Tightening torque
8.0—9.5 N·m {82—96 kgf·cm, 71—84 in·lbf}

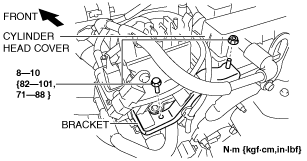

4.  Install the bracket shown in the figure.

am6zzw00005134
