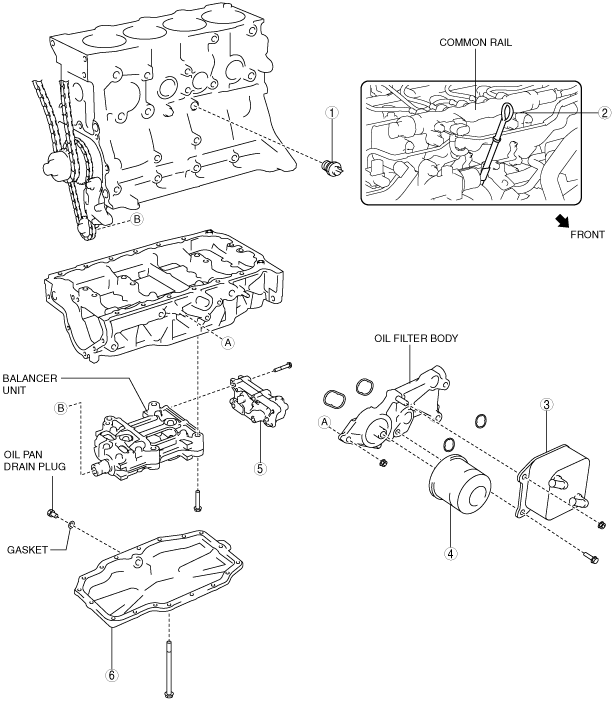

LUBRICATION SYSTEM LOCATION INDEX [MZR-CD 2.2]

id0111f2800100

am3zzw00006302

1	Oil pressure switch (See OIL PRESSURE INSPECTION [MZR-CD 2.2].)
2	Dipstick (See ENGINE OIL LEVEL INSPECTION [MZR-CD 2.2].) (See ENGINE OIL REPLACEMENT [MZR-CD 2.2].)
3	Oil cooler (See OIL COOLER REMOVAL/INSTALLATION [MZR-CD 2.2].)
4	Oil filter (See OIL FILTER REPLACEMENT [MZR-CD 2.2].)
5	Oil pump (See OIL PUMP REMOVAL/INSTALLATION [MZR-CD 2.2].) (See OIL PUMP DISASSEMBLY/ASSEMBLY [MZR-CD 2.2].) (See OIL PUMP INSPECTION [MZR-CD 2.2].)
6	Oil pan (See OIL PAN REMOVAL/INSTALLATION [MZR-CD 2.2].)
