EMISSION SYSTEM LOCATION INDEX [MZR-CD 2.2]

id0116f2803700

Engine Compartment Side

am6zzw00004271

1	EGR cooler bypass valve control solenoid valve (See EGR COOLER BYPASS VALVE CONTROL SOLENOID VALVE INSPECTION [MZR-CD 2.2].)
2	EGR cooler (See EGR COOLER REMOVAL/INSTALLATION [MZR-CD 2.2].)
3	EGR cooler bypass valve (See EGR COOLER REMOVAL/INSTALLATION [MZR-CD 2.2].) (See EGR COOLER BYPASS VALVE INSPECTION [MZR-CD 2.2].)
4	Intake shutter valve (See INTAKE SHUTTER VALVE INSPECTION [MZR-CD 2.2].)
5	EGR valve (See EGR VALVE REMOVAL/INSTALLATION [MZR-CD 2.2].) (See EGR VALVE INSPECTION [MZR-CD 2.2].)

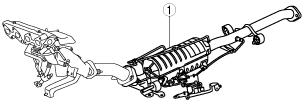

Exhaust System Side

am6zzw00004272

1	Oxidation catalytic converter (built-in diesel particulate filter)

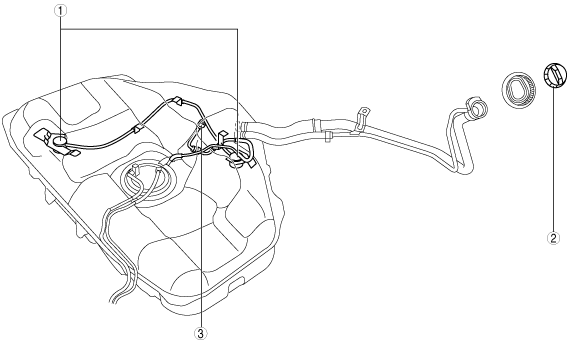

Fuel Tank Side

am6zzw00004273

1	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION [MZR-CD 2.2].) (See ROLLOVER VALVE INSPECTION [MZR-CD 2.2].)
2	Fuel-filler cap
3	Check valve (two-way) (See CHECK VALVE (TWO-WAY) REMOVAL/INSTALLATION [MZR-CD 2.2].) (See CHECK VALVE (TWO-WAY) INSPECTION [MZR-CD 2.2].)
