NEUTRAL SWITCH INSPECTION [MZR 1.8, MZR 2.0, MZR 2.5]

id0140d7800800

1.  Disconnect the negative battery cable.

2.  Remove the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION [G35M-R](5MTX).)(See NEUTRAL SWITCH REMOVAL/INSTALLATION [G66M-R](6MTX).)

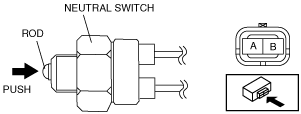

3.  Inspect for continuity between the neutral switch terminals using an ohmmeter.

am6zzw00005509

•  If not as specified, replace the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION [G35M-R](5MTX).)(See NEUTRAL SWITCH REMOVAL/INSTALLATION [G66M-R](6MTX).)

Neutral switch specification

Measured condition

Transmission

Continuity
Rod pushed
In neutral
Continuity detected
Except above
Other
No continuity
