KNOCK SENSOR (KS) REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5]

id0140d7802900

1.  Disconnect the negative battery cable.

2.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)

3.  Remove the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)

4.  Disconnect the KS connector.

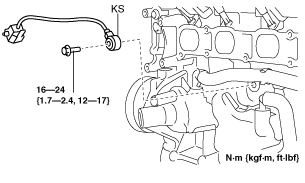

5.  Remove the KS.

am5ezw00001549

6.  Install in the reverse order of removal.
