BRAKE PEDAL REMOVAL/INSTALLATION

id041100193300

Caution

•  The clearance between the brake switch and the brake pedal is automatically adjusted to the correct amount when the brake switch is inserted into the installation hole on the brake pedal and rotated to fix in place. If the brake switch is not properly installed, the clearance may be incorrect, causing a brake light malfunction. Therefore, always verify that the brake pedal is properly installed and fully released before installing the brake switch to the pedal.

•  Once the brake switch clearance has automatically been adjusted, it cannot be adjusted again. Therefore, replace the switch with a new one when replacing the power brake unit or the pedal, or performing any procedure that changes the pedal stroke.

1.  Remove the accelerator pedal. (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].) (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See ACCELERATOR PEDAL COMPONENT REMOVAL/INSTALLATION [MZR-CD 2.2].)

2.  Remove the parking sensor control module. (with parking sensor control module)) (See PARKING SENSOR CONTROL MODULE REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

L.H.D.

am6zzw00004962

1	Brake switch connector, wiring harness
2	Brake switch (See Brake Switch Installation Note.)
3	Wiring harness (if equipped)
4	Snap pin
5	Clevis pin
6	Brake pedal (See Brake Pedal Removal Note.) (See Brake Pedal Installation Note.)
7	Pedal pad

R.H.D.

am6zzw00004963

1	Brake switch connector, wiring harness
2	Brake switch (See Brake Switch Installation Note.)
3	Snap pin
4	Clevis pin
5	Brake pedal (See Brake Pedal Removal Note.) (See Brake Pedal Installation Note.)
6	Pedal pad

Brake Pedal Removal Note

1.  For R.H.D., remove the insulator. (MZR 2.0 DISI, MZR 2.5) (See MASTER CYLINDER REMOVAL/INSTALLATION [R.H.D.].)

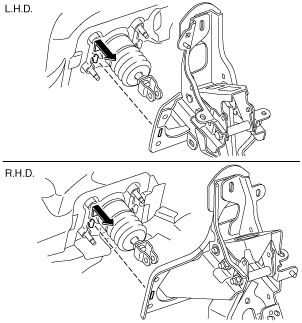

2.  Remove the brake pedal as shown in the figure.

am6zzw00004964

Note

•  If the brake pedal is difficult to remove, move the power brake unit component a little toward the vehicle front while being careful of the brake pipe.

Brake Pedal Installation Note

1.  Install the brake pedal as shown in the figure.

am6zzw00001628

Note

•  If the brake pedal is difficult to remove, move the power brake unit component a little toward the vehicle front while being careful of the brake pipe.

Brake Switch Installation Note

1.  Inspect the brake pedal. (See BRAKE PEDAL INSPECTION.)

2.  With the brake pedal fully released, insert a new brake switch into the installation hole on the brake pedal.

3.  Secure the brake switch by turning it counterclockwise 45°.

am6zzw00004965
