MASTER CYLINDER REMOVAL/INSTALLATION [L.H.D.]

id041100193550

Caution

• When removing/installing the master cylinder, avoid touching the primary piston with your hand when not necessary. Otherwise, it could damage the master cylinder.

1. Remove the battery. (See BATTERY REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

4. Add brake fluid, bleed the brakes, and inspect for leakage after the installation has been completed. (See AIR BLEEDING.)

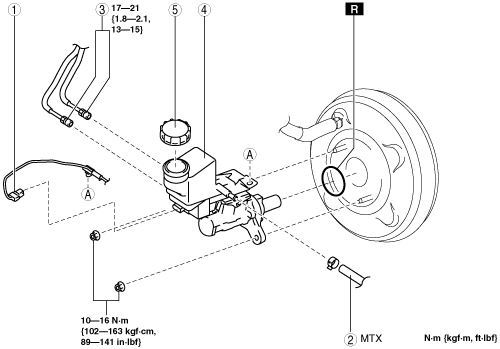

am6zzw00004966

1

Brake fluid level sensor connector

2

Reserve tank hose

3

Brake pipe

4

Master cylinder component

5

Cap

1	Brake fluid level sensor connector
2	Reserve tank hose
3	Brake pipe
4	Master cylinder component
5	Cap
