REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION

id041300199000

1.  For the 4SD, remove the following parts:

(1)  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION [4SD].)

(2)  Remove the rear side seat back. (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION.)

2.  For the 5HB or WGN, remove the following parts:

(1)  Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Remove the tire house trim. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the rear ABS wheel-speed sensor connector.

am6zzw00004990

am6zzw00004991

4.  Press the rear ABS wheel-speed sensor tabs and press out the sensor toward the outside of the vehicle.

5.  Remove in the order indicated in the table.

6.  Install in the reverse order of removal.

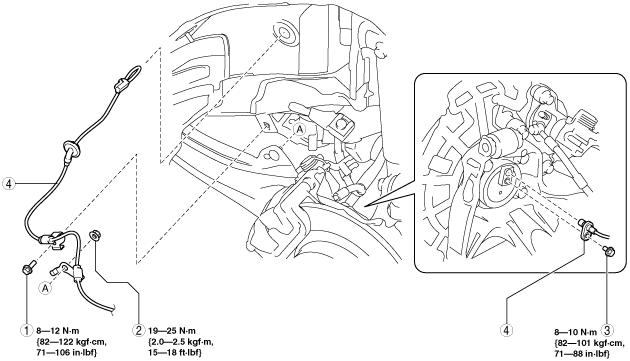

am6zzw00004992

1	Bolt
2	Nut
3	Bolt
4	Rear ABS wheel-speed sensor
