SELECTOR CABLE ADJUSTMENT

id051800271600

1.  Remove the negative battery cable.

2.  Remove the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION.)

3.  Select the selector lever to the P position.

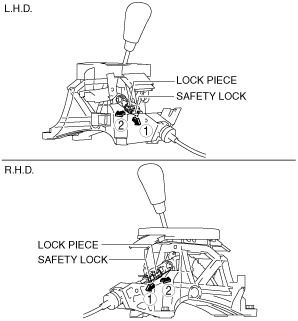

4.  Unlock the lock piece of the selector cable (selector lever side) in the order as shown in the figure.

am6zzw00004936

5.  Verify that the manual shaft is in the P position.

am6zzw00004938

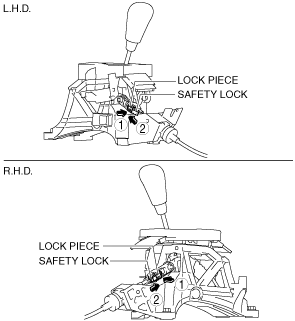

6.  Lock the lock piece and safety lock of the selector cable (selector lever side) in the order as shown in the figure.

am6zzw00004939
