KEY INTERLOCK SOLENOID INSPECTION

id051800801100

Caution

• Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.

1. Disconnect the negative battery cable.

2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

3. Disconnect the key interlock solenoid connector.

am6zzw00004948

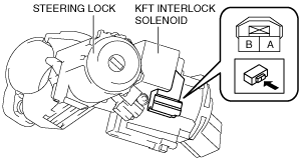

4. Verify the continuity between key interlock solenoid terminals A and B.

am6zzw00004949

• If there is any malfunction, replace the steering lock. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)
