DTC B1D25:11, B1D25:15 [WATER HEATER SYSTEM]

id070228730200

DTC

B1D25:11

Fuel pump (water heater system) circuit short to ground

B1D25:15

Fuel pump (water heater system) circuit short to power supply or open
DETECTION CONDITION
•  CPU detects malfunction in fuel pump (water heater system) circuit
POSSIBLE CAUSE

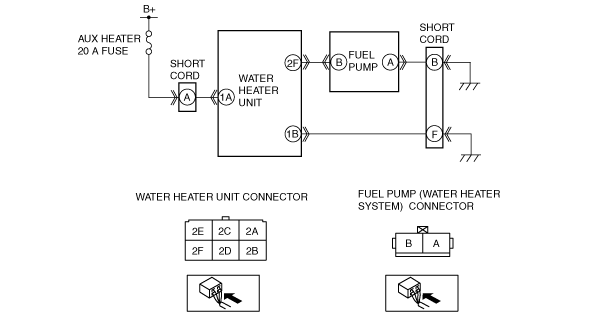

•  Open circuit between water heater unit terminal 2F and fuel pump (water heater system) terminal B
•  Short to ground between water heater unit terminal 2F and fuel pump (water heater system) terminal B
•  Open circuit between fuel pump (water heater system) terminal A and GND
•  Fuel pump (water heater system) malfunction
•  Water heater unit malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION
1
INSPECT FUEL PUMP (WATER HEATER SYSTEM) CIRCUIT FOR OPEN CIRCUIT
•  Inspect the wiring harness for continuity between the fuel pump (water heater system) connector terminal B and water heater unit connector terminal 2F.
•  Is there continuity?
Yes
Go to the next step.
No
Repair/replace the malfunctioning vehicle wiring harness, then go to Step 6.
2
INSPECT FUEL PUMP (WATER HEATER SYSTEM) CIRCUIT FOR SHORT TO GROUND
•  Inspect the wiring harness for continuity between the fuel pump (water heater system) connector terminal B and body ground.
•  Is there continuity?
Yes
Repair/replace the malfunctioning vehicle wiring harness, then go to Step 6.
No
Go to the next step.
3
INSPECT FUEL PUMP (WATER HEATER SYSTEM) GND CIRCUIT FOR OPEN CIRCUIT
•  Inspect the wiring harness for continuity between the fuel pump (water heater system) connector terminal A and body ground.
•  Is there continuity?
Yes
Go to the next step.
No
Repair/replace the malfunctioning vehicle wiring harness, then go to Step 6.
4
INSPECT FUEL PUMP (WATER HEATER SYSTEM)
•  Inspect the fuel pump (water heater system).
•  Is fuel pump (water heater system) okay?
Yes
Go to the next step.
No
Replace the fuel pump (water heater system), then go to Step 6.
(See FUEL PUMP (WATER HEATER SYSTEM) REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See FUEL PUMP (WATER HEATER SYSTEM) REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
5
INSPECT WATER HEATER UNIT
•  Perform the water heater system operation check.
•  Clear DTCs using the M-MDS.
•  Perform the water heater unit DTC inspection using the M-MDS.
•  Are DTCs B1D25:11 or B1D25:15 displayed?
Yes
Replace the water heater unit, then go to the next step.
(See WATER HEATER UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)
(See WATER HEATER UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
No
Go to the next step.
6
VERIFY AFTER REPAIR PROCEDURE
•  Perform after repair procedure.
•  Are any DTCs present?
Yes
Go to the applicable DTC troubleshooting.
No
Troubleshooting completed.
