WATER HEATER UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER]
id0740a2908200
1. Disconnect the negative battery cable.
2. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [MZR-CD 2.2].)
3. Remove the aerodynamic under cover No.2. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION.)
4. Remove the water heat silencer.
am6zzw00003785
|
5. Remove the cowl panel. (See COWL PANEL REMOVAL/INSTALLATION.)
6. Move the fuel filter to the place where does not obstructs. (See FUEL FILTER COMPONENT REMOVAL/INSTALLATION [MZR-CD 2.2].)
7. Remove the cooler pipe bracket and move the cooler pipe HI and LO to the place where does not obstructs. (See REFRIGERANT LINE REMOVAL/INSTALLATION.)
8. Remove the fuel pump. (See FUEL PUMP (WATER HEATER SYSTEM) REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
9. Remove the bolts and nut.

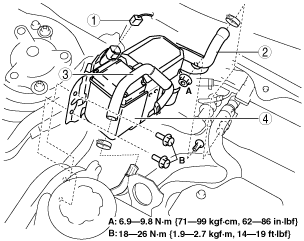

10. Remove in the order indicated in the table.
am6zzw00003695
|
|
1
|
Connector
|
|
2
|
Water hose No.1
|
|
3
|
Water hose No.3
|
|
4
|
Water heater unit
|
11. Install in the reverse order of removal.
12. Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT [MZR-CD 2.2].)
13. Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [MZR-CD 2.2].) (See ENGINE COOLANT LEVEL INSPECTION [MZR-CD 2.2].)
14. Perform water heater operation check. (See WATER HEATER SYSTEM OPERATION CHECK [MANUAL AIR CONDITIONER].)

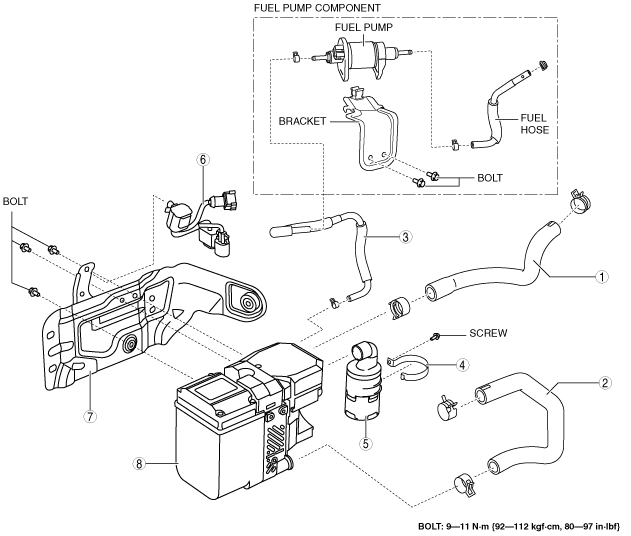

Water Heater Unit Disassembly/Assembly
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
am6zzw00007895
|
|
1
|
Water hose No.1
(See Water hose installation note.)
|
|
2
|
Water hose No.3
(See Water hose installation note.)
|
|
3
|
Fuel hose
(See Fuel hose installation note.)
|
|
4
|
Band
|
|
5
|
Air intake hose
|
|
6
|
Wiring harness
|
|
7
|
Bracket
|
|
8
|
Water heater unit
|

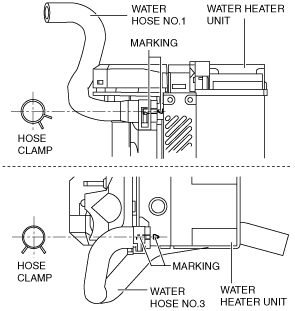

Water hose installation note
1. Install the water hose to the position shown in the figure.
am6zzw00007896
|
Fuel hose installation note
1. Install the fuel hose to the position shown in the figure.
am6zzw00007897
|
