SECURITY LIGHT: 11, DTC: B10D9:87/P1260:00 [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)]

id09021d353000

DTC

Security light flashing pattern

11

Communication error to coil antenna

M-MDS display

Keyless control module

B10D9:87

PCM

P1260:00

DETECTION CONDITION

•  No detected communication with coil antenna.

POSSIBLE CAUSE

•  Coil antenna connector or terminals malfunction

•  Open circuit in wiring harness between coil antenna terminal F and body ground

•  Keyless control module connector or terminals malfunction

•  Short to ground in wiring harness between the following terminals:

―  Coil antenna terminal B—Keyless control module terminal 4Q

―  Coil antenna terminal C—Keyless control module terminal 2D

―  Coil antenna terminal D—Keyless control module terminal 2B

•  Open circuit in wiring harness between the following terminals:

―  Coil antenna terminal B—Keyless control module terminal 4Q

―  Coil antenna terminal C—Keyless control module terminal 2D

―  Coil antenna terminal D—Keyless control module terminal 2B

•  Coil antenna malfunction

•  Keyless control module malfunction

DTC	Security light flashing pattern	11	Communication error to coil antenna
DETECTION CONDITION	• No detected communication with coil antenna.
POSSIBLE CAUSE	• Coil antenna connector or terminals malfunction • Open circuit in wiring harness between coil antenna terminal F and body ground • Keyless control module connector or terminals malfunction • Short to ground in wiring harness between the following terminals: ― Coil antenna terminal B—Keyless control module terminal 4Q ― Coil antenna terminal C—Keyless control module terminal 2D ― Coil antenna terminal D—Keyless control module terminal 2B • Open circuit in wiring harness between the following terminals: ― Coil antenna terminal B—Keyless control module terminal 4Q ― Coil antenna terminal C—Keyless control module terminal 2D ― Coil antenna terminal D—Keyless control module terminal 2B • Coil antenna malfunction • Keyless control module malfunction

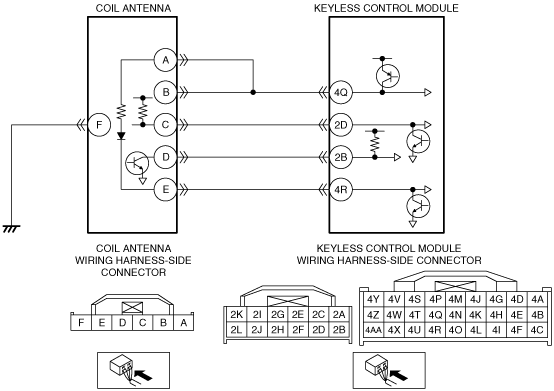

System Wiring Diagram

am6zzw00006139

Diagnostic Procedure

STEP

INSPECTION

ACTION

1

VERIFY DTCs

•  Clear the DTC from the keyless control module using the M-MDS.
(See CLEARING DTC [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].)

•  Verify the immobilizer system DTC using the M-MDS.
(See DTC INSPECTION [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].)

•  Is the DTC B10E6:11 present?

Yes

Perform the DTC B10E6:11 inspection.

(See SECURITY LIGHT: NOT ILLUMINATED, DTC B10E6:11/- [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].)

No

Go to the next step.

2

INSPECT COIL ANTENNA CONNECTOR AND TERMINALS

•  Switch the ignition to off.

•  Disconnect the negative battery cable.

•  Disconnect the coil antenna connector.

•  Inspect the connector and terminals (corrosion, damage, pin disconnection).

•  Is there any malfunction?

Yes

Repair or replace the connector or terminals, then go to Step 8.

No

Go to the next step.

3

INSPECT COIL ANTENNA GROUND CIRCUIT FOR OPEN CIRCUIT

•  Coil antenna connector is disconnected.

•  Inspect for continuity between coil antenna terminal F (wiring harness-side) and body ground.

•  Is there continuity?

Yes

Go to the next step.

No

Repair or replace the wiring harness for a possible open circuit, then go to Step 8.

4

INSPECT KEYLESS CONTROL MODULE CONNECTOR AND TERMINALS

•  Disconnect the keyless control module connector.

•  Inspect the connector and terminals (corrosion, damage, pin disconnection).

•  Is there any malfunction?

Yes

Repair or replace the connector or terminals, then go to Step 8.

No

Go to the next step.

5

INSPECT COIL ANTENNA CIRCUIT FOR SHORT TO GROUND

•  Coil antenna and keyless control module connectors are disconnected.

•  Inspect for continuity between the following terminals (wiring harness-side) and body ground:

―  Coil antenna terminal B

―  Coil antenna terminal C

―  Coil antenna terminal D

•  Is there continuity?

Yes

Repair or replace the wiring harness for a possible short to ground, then go to Step 8.

No

Go to the next step.

6

INSPECT COIL ANTENNA CIRCUIT FOR OPEN CIRCUIT

•  Coil antenna and keyless control module connectors are disconnected.

•  Inspect for continuity between the following terminals (wiring harness-side):

―  Coil antenna terminal B—Keyless control module terminal 4Q

―  Coil antenna terminal C—Keyless control module terminal 2D

―  Coil antenna terminal D—Keyless control module terminal 2B

•  Is there continuity?

Yes

Go to the next step.

No

Repair or replace the wiring harness for a possible open circuit, then go to Step 8.

7

VERIFY COIL ANTENNA MALFUNCTION

•  Make sure to reconnect all disconnected connectors.

•  Reconnect the negative battery cable.

•  Clear the DTC from the keyless control module using the M-MDS.
(See CLEARING DTC [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].)

•  Verify the immobilizer system DTC using the M-MDS.
(See DTC INSPECTION [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].)

•  Is the same DTC present?

Yes

Replace the coil antenna, then go to the next step.

(See COIL ANTENNA REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

No

Go to Step 9.

8

VERIFY TROUBLESHOOTING COMPLETED

•  Make sure to reconnect all disconnected connectors.

•  Reconnect the negative battery cable.

•  Clear the DTC from the keyless control module using the M-MDS.
(See CLEARING DTC [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].)

•  Verify the immobilizer system DTC using the M-MDS.
(See DTC INSPECTION [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].)

•  Is the same DTC present?

Yes

Replace the keyless control module and program the immobilizer system-related parts.

(See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

(See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

Go to the next step.

No

Go to the next step.

9

VERIFY THAT NO OTHER DTCs ARE PRESENT

•  Are any DTCs present?

Yes

Go to the applicable DTC inspection.

(See DTC TABLE [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)].)

No

DTC troubleshooting completed.
