DTC INSPECTION [Bluetooth SYSTEM (HANDS-FREE TELEPHONE (HF/TEL) SYSTEM)]

id0902g8440500

Note

•  All DTCs displayed in the DTC inspection should be entered in the Audio Repair Order Form.

Audio Unit

With M-MDS

1.  Connect the M-MDS (IDS) to the DLC-2.

am6zzw00006237

2.  After the vehicle is identified, select the following items from the initialization screen of the IDS.

(1)  Select “Self Test”.

(2)  Select “Modules”.

(3)  Select “ACU”.

3.  Verify the DTC according to the directions on the screen.

•  If any DTCs are displayed, perform troubleshooting according to the corresponding DTC inspection.

4.  After completion of repairs, clear all DTCs stored in the Bluetooth unit. (See CLEARING DTC [Bluetooth SYSTEM (HANDS-FREE TELEPHONE (HF/TEL) SYSTEM)].)

Without M-MDS (on-board diagnostic test mode)

1.  Switch the ignition to ACC or ON.

2.  While pressing the POWER/VOLUME switch, simultaneously press the RPT/PRESET 1 switch and the PRESET 6 switch for 3 s or more.

With RDS (radio data system)

am6zzw00005496

Without RDS (radio data system)

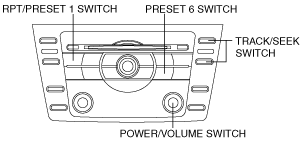

am6zzw00005497

Note

•  If several DTCs are in the memory, they can be displayed using the TRACK/SEEK switch (up or down).

am6zzw00005513

3.  To stop the DTC inspection, ignition is switched to off.

Car-navigation Unit

1.  Switch the ignition to ACC or ON.

2.  Turn the audio power to OFF.

3.  While pressing the POWER/VOLUME switch, simultaneously press the DISP switch for 0.2 s or more.

With RDS (radio data system)

am6zzw00005498

Without RDS (radio data system)

am6zzw00007049

4.  While pressing the detail switch.

acxuuw00003794

5.  To stop the DTC inspection, ignition is switched to off.
