DIAGNOSTIC ASSIST FUNCTION [Bluetooth SYSTEM (HANDS-FREE TELEPHONE (HF/TEL) SYSTEM)]
id0902g8804500
Audio Unit
Software version verification
1. Launch the DTC inspection. (See DTC INSPECTION [Bluetooth SYSTEM (HANDS-FREE TELEPHONE (HF/TEL) SYSTEM)].)
2. Press the TRACK/SEEK down switch to display the oldest error code of the error codes that have been recorded.
With RDS (radio data system)
am6zzw00005502
|
Without RDS (radio data system)
am6zzw00005503
|
3. Press the TRACK/SEEK down switch.
4. Verify the software version.
am6zzw00005514
|
5. To stop the DTC inspection, ignition is switched to off.
Connection condition verification
1. Launch the DTC inspection. (See DTC INSPECTION [Bluetooth SYSTEM (HANDS-FREE TELEPHONE (HF/TEL) SYSTEM)].)
2. Press TRACK/SEEK down switch to display the software version.
With RDS (radio data system)
am6zzw00005502
|
Without RDS (radio data system)
am6zzw00005503
|
3. Press the TRACK/SEEK down switch.
4. Verify the connected unit.
am6zzw00005515
|
5. To stop the DTC inspection, ignition is switched to off.
Password reset
1. Switch the ignition to ACC or ON.
2. Press the PRESET 2 switch while pressing the AUTO-M switch until the password reset verification beep sound is heard.
With RDS (radio data system)
am6zzw00005504
|
Without RDS (radio data system)
am6zzw00005505
|
3. Verify the “Clear” is displayed in the information display.
am6zzw00005506
|
4. Cancel the diagnostic assist function by either turning off the audio unit power or by switch the ignition to off.
With Car-navigation Unit
Starting procedure
1. Switch the ignition to ACC or ON.
2. Turn the audio power to ON.
3. While pressing the POWER/VOLUME switch, simultaneously press the TUNE/AUDIO switch for 0.2 s or more.
With RDS (radio data system)
am6zzw00005507
|
Without RDS (radio data system)
am6zzw00007050
|
4. Press the “Diagnostic assist code input switch”, and input the diagnostic assist code.
5. Select “ENTER”.

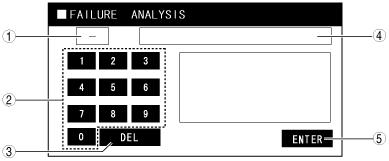

Diagnostic assist code input screen
acxuuw00003799
|
|
No. |
Name |
Content/function |
|---|---|---|
|
1
|
Diagnostic assist code
|
Display the diagnostic assist code.
|
|
2
|
Diagnostic assist code input switch
|
Input the diagnostic assist code.
|
|
3
|
DEL switch
|
Diagnostic assist code clear
|
|
4
|
Diagnostic content
|
Display the diagnostic content.
|
|
5
|
ENTER switch
|
Go to the diagnostic assist function.
|
6. Press the POWER/VOLUME switch to return to the diagnostic assist code input screen.
7. Press the POWER/VOLUME switch to release the diagnostic assist function.
Diagnostic assist code “37”connection condition verification
1. Press the “Diagnostic assist code input switch”, and input the diagnostic assist code “37”.
2. Select “ENTER”.
|
Inspection |
Display |
Measures |
|
|---|---|---|---|
|
• Launch the connection condition mode.
• Verify the connection condition.
|
AVN CONNECT
|
The Bluetooth unit connection condition is normal.
|
|
|
AVN CON ERR
|
Verify the Bluetooth unit connection condition. (See Bluetooth UNIT REMOVAL/INSTALLATION.)
|
||
3. Press the POWER/VOLUME switch to return to the diagnostic assist code input screen.
4. Press the POWER/VOLUME switch to release the diagnostic assist function.
Diagnostic assist code “38” software version verification
1. Press the “Diagnostic assist code input switch”, and input the diagnostic assist code “38”.
2. Select “ENTER”.
|
Inspection |
Display |
Measures |
|
|---|---|---|---|
|
• Launch the software version verification mode.
• Software version verification.
|
Ver.0110
|
—
|
|
3. Press the POWER/VOLUME switch to return to the diagnostic assist code input screen.
4. Press the POWER/VOLUME switch to release the diagnostic assist function.
Diagnostic assist code “39” password reset
1. Press the “Diagnostic assist code input switch”, and input the diagnostic assist code “39”.
2. Select “ENTER”.
|
Inspection |
Display |
Measures |
|
|---|---|---|---|
|
• Launch the password reset mode.
|
PASSWD CLEAR
|
—
|
|
3. Press the POWER/VOLUME switch to return to the diagnostic assist code input screen.
4. Press the POWER/VOLUME switch to release the diagnostic assist function.
